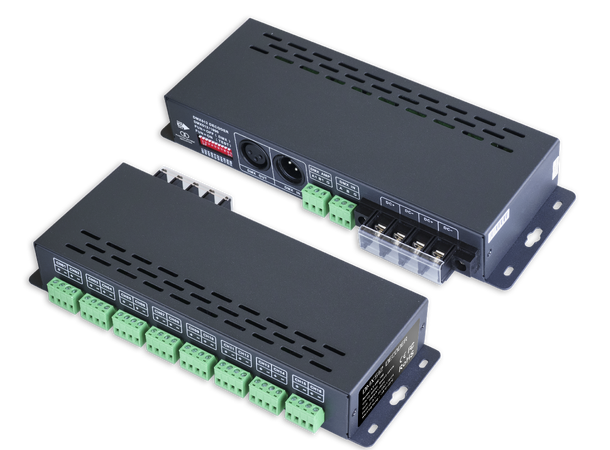

LT-880-350/LT-880-700 with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX mastercontroller must recognize the RDM protocol).
This compact decoder works with DMX512 console. Realize 0-100% brightness and various changing effect.Equiped with DMX standard 3-pin XLR, RJ45 and green terminal interface, easy to operate. And it can control single color, bi-color, RGB LED lights.
- Input signal DMX512/RDM
- Input voltage 12~48Vdc
- Output voltage 3~46Vdc
- Output current CC 350mA×16CH
- Output power 1.05~16.1W×16CH Max. 257.6W
- Photoelectric isolate Yes
- DMX512 socket 3-pin XLR, RJ45, Green terminal
- Working temp. -30~65
- Dimension L260×W123×H41mm
- Package size L276×W128×H46mm
- Weight(G.W.) 950g
