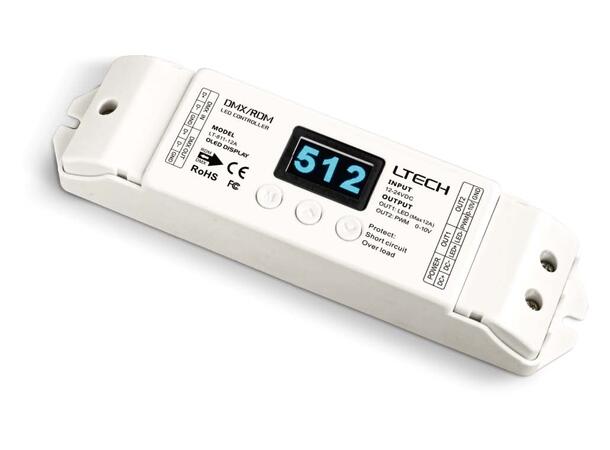

LT-811-12A with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Designed for LED dimming, produce great lighting effects, can be worked with any brand of DMX dimmer, outstanding performance with following features:
OLED real-time display.
16bit / 8bit input.
3 dimming curve optional.
Short circuit / Over current / Over-heat protection.
Built-in protection circult of resistance to lightning stroke and ESD static electricity.
Specifications:
Input Signal: DMX512/RDM
Input Voltage: Output: 12-24VDC
Output: 12A×1CH+0-10V×1CH
Max Output Power: 0-144W/288W
Protection: Short circuit / Over current/ Over-heat
Over-heat protection Working Temp.: -30°C~55°C
Dimensions: L175×W44×H30mm
Package Size: L178×W48×H33mm
Weight(G.W.): 160g
For ørige spesifikasjoner, se datablad under "lenker & Dokumenter"
