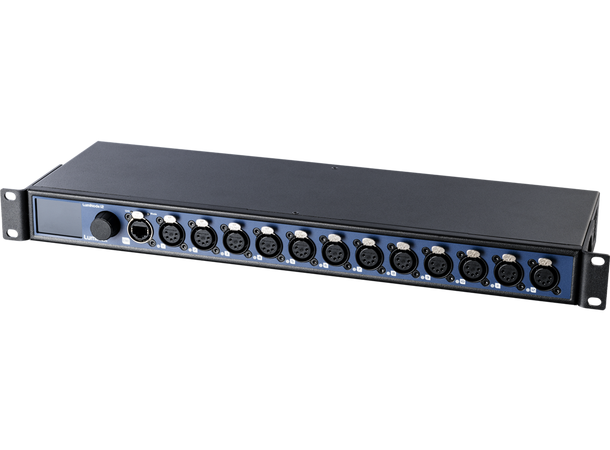

LUMINEX Luminode 12 DMX/RDM NODE

12 x DMX/RDM, 16 Processing engines, 19"

Varenr: 160389
29 106,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare
BeskrivelseAlternativerLenker & dokumenter
Beskrivelse

The LumiNode 12 is the 12 port node from the LumiNode range. The unit serves 16 processing engines and 12 DMX outlets, that can be used as input or output. It also offers two 1 Gbps Ethernet ports (front and rear) for an easy network connection and a graphical display for better settings and visualization. This unit is the ideal companion for high density port count per 19? rack space with lots of processing power.

  • Process engines: 16
  • Merging engine: HTP, LTP, Backup, Switch, X-Fade, Custom
  • Softpatch:Yes
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile Manager: Yes
  • Snapshot: Yes
  • Monitoring software: LumiNet Monitor V2 (free)
  • DMX Port Direction: Input or output (configurable)
  • DMX port isolation: Optical and galvanic isolation per port
  • DMX Port termination/biasing: Yes
  • DMX timing: Framerate: 10-40fps – break: 176-352µs
  • Ethernet port speed: 1Gbps
  • Port sensing: Auto-negociation, MDI / MDIX
  • DMX connectivity: 12x gold plated Neutrik 5 pin XLR (female)
  • Ethernet connectivity: 2x shielded Neutrik Ethercon connector
  • Power connectivity: 1x Neutrik powerCON TRUE1 In/Out, Ethernet (PoE)
  • Power input: 100-240VAC 50-60Hz, PoE (802.3af)
  • Power consumption: Max. 13W
  • PoE powered: Yes IEEE 802.3af (class 0 rated)
  • DMX protocols: DMX512 (1986 & 1990), DMX512-A ANSI E1.11, RDM ANSI E1.20
  • Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)
  • Certificates/Approvals: cSGSus Mark, CE, CB certificate
  • Display and jog: Yes
  • Status LEDs: Ethernet Port link/activity LED and mode LED, DMX Port DMX/RDM LED
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 183 x 44 mm (19" x 7,2" x 1,73")
  • Weight: 2,4 kg
  • Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
  • Environment: Operating temperature: 0 tot +50°C, Storage temperature: -10 tot +70°C, Humidity (non condensing): 5 to 95% RH
  • URL: https://www.luminex.be/products/luminode/luminode12/
  • Configuration: Through the built-in web server or with the front end display menu
  • Product codes: LU 01 00072 (LumiNode 12 with PoE input)
  • Position: 1
  • EMC: EN55032 class A, EN55035, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, FCC Part 15 CFR 47 class A, ICES-003 Issue 6
  • Safety approvals: IEC 60950-1, EN 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 62368-1, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, CE
  • Green:RoHS, Reach
