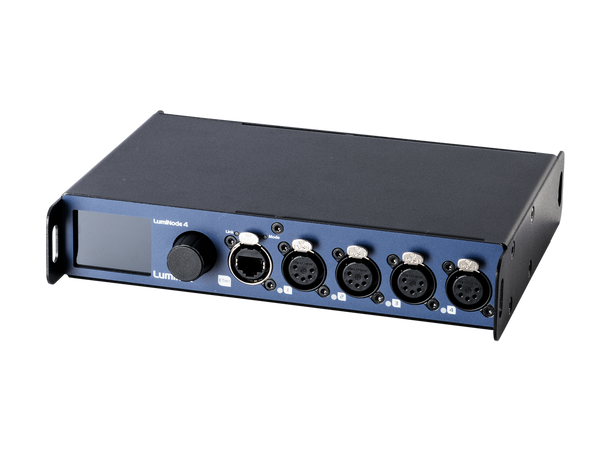

LUMINEX Luminode 4 DMX/RDM NODE

he LumiNode 4 is the 4 port node from the LumiNode range. The unit serves 6 processing engines and 4 DMX outlets, that can be used as input or output. It also offers two 1 Gbps Ethernet ports (front and rear) for an easy network connection and a graphical display for better settings and visualization. This unit is the ideal for Truss applications or as a half 19? rack unit with lots of processing power.

• Process engines: 6
• Merging engine: HTP, LTP, Backup, Switch, X-Fade, Custom
• Softpatch: Yes
• Trigger system: Yes
• ReRoute: Yes
• Profile Manager: Yes
• Snapshot: Yes
• Monitoring software: LumiNet Monitor V2 (free)
• DMX Port Direction: Input or output (configurable)
• DMX port isolation: Optical and galvanic isolation per port
• DMX Port termination/biasing: Yes
• DMX timing: Framerate: 10-40fps – break: 176-352µs
• Ethernet port speed: 1Gbps
• Port sensing: Auto-negociation, MDI / MDIX
• DMX connectivity: 4x gold plated Neutrik 5 pin XLR (female)
• Ethernet connectivity: 2x shielded Neutrik Ethercon connector
• Power connectivity: 1x Neutrik powerCON TRUE1, Ethernet (PoE)
• Power input: 100-240VAC 50-60Hz, PoE (802.3af)
• Power consumption: Maximum 13W
• PoE powered: Yes IEEE 802.3af (class 0 rated)
• DMX protocols: DMX512 (1986 & 1990), DMX512-A ANSI E1.11, RDM ANSI E1.20
• Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)
• Certificates/Approvals: cSGSus Mark, CE, CB certificate
• Display and jog: Yes
• Status LEDs: Ethernet Port link/activity LED and mode LED, DMX Port DMX/RDM LED
• Mounting: Rack, Truss
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 183 x 44 mm (19" x 7,2" x 1,73")
• Weight: 2,4 kg
• Packaging: 530 x 330 x 80 mm (21" x 13" x 3,15")
• Environment: Operating temperature: 0 tot +60°C, Storage temperature: -10 tot +70°C, Humidity (non condensing): 5 to 95% RH
• URL:https://www.luminex.be/products/luminode/luminode4/
• Configuration: Through the built-in web server or with the front end display menu
• Product codes: LU 01 00071 (LumiNode 4 with PoE input)
• Position: 1
• Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024
