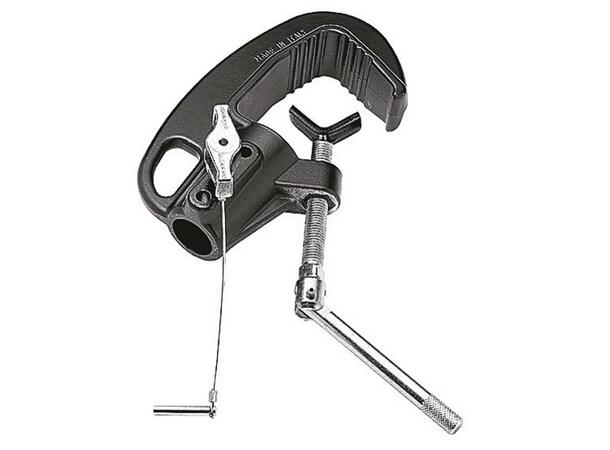

The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminium clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg/551.2 lbs, the jaws clamping range is from 20 mm - 55 mm/0.78 - 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150
- Gravity Cast junior clamp with load capacity of 250 kg/551.2 lbs
- Pipe clamp jaws work on diameters from 20 to 55 mm/0.78 to 2.16''
- Includes safety cable with pin to secure junior pins in socket
- Tommy bar included to lock clamp: No tools required
- Easily accepts a safety cable to secure clamp and load
Spesifications
- Weight: 1.13 kg
- Payload: 250 kg
- Attachment 01: 1 1/8" (28mm) socket
- Length: 4.8 cm
- Clamp range - max. (round tube): 55 mm
- Clamp Range Min Round Tube: 20 mm
- Colour: Black
- Material: Aluminium
