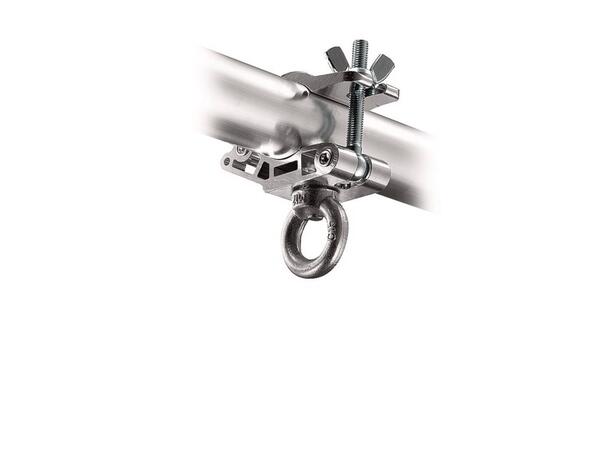

The Avenger C4463-1 MP Eye Coupler grid clamp comes supplied with an attached lifting ring. This popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65'') to 52 mm(2.04'') and is 50 mm(1.96'') wide. Capable of holding up to 300 kg/661.4 lb loads this clamp will perform in many demanding environments. Capable of holding up to 300 kg/661.4 lb loads this clamp will perform in many demanding environments. TÜV and SÜD certified. Recommended Accessories: C155, C155-01, E390, C460-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1
- Made from aluminium in silver finish
- Jaws clamp down on pipes ranging from 42-52 mm/1.65-2.04''
- MP Eye Coupler with lifting ring for wires, chains and ropes.
- Max Capacity 300 kg/661.4 lbs
- TÜV/SÜD certified
Spesifications
- Weight: 0.58 kg
- Payload: 300 kg
- Attachment 01: Eyebolt
- Length: 50 cm
- Certification: TUV
- Clamp range - max. (round tube): 52 mm
- Clamp Range Min Round Tube: 42 mm
- Colour: Silver
- Material: Aluminium
