Features

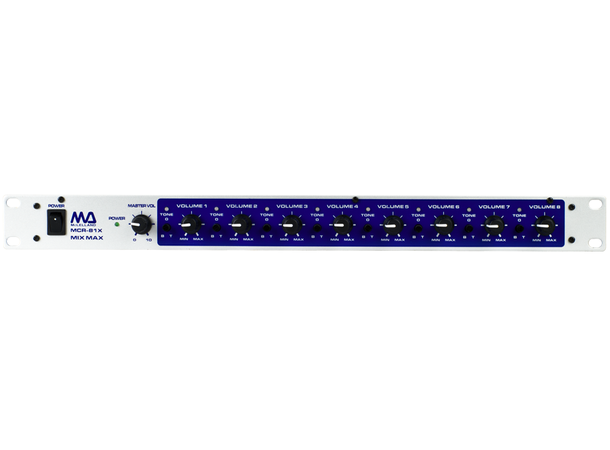

•19”single rack mount microphone and line mixer

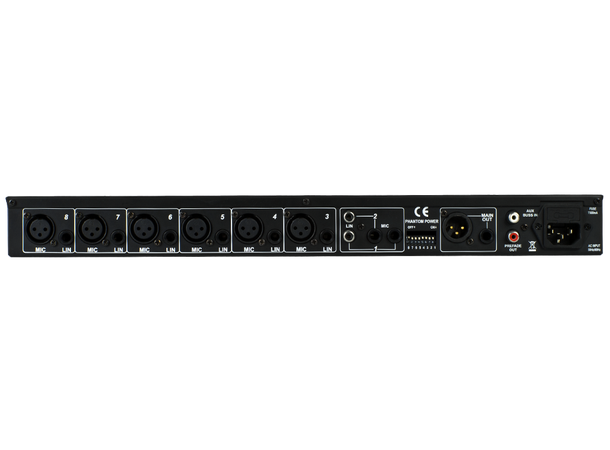

•8 channels total inputs
•6 channels XLR & 1/4” TRS input & 2 channels RCA & 1/4” TRS input
•Single 1/4” TRS & XLR Balanced mian out
•RCA prefader out
•RCA Aux Bus in
•48V phantom power
Specifications
•Input Impedance: 600 Ohm(Mic XLR), 50 Ohm •Unbalanced(1/4” TRS), 10K Ohm(RCA Bus input)
•Max. Input Level: 15 dBV(Mic), 22 dBV(Line)
•Max. Gain: 55 dB(Mic), 26 dB(Line)
•Tone Control: 20 dB Treble/Bass Cut
•Max. Output Level: +17 dBV
•Output Impedance: 51 Ohm
•Phantom Power Supply: 48V
•S/N Ratio: 106 dB
•THD: < 0.005%
•Dimension: 436 mm(W) x 123 mm(D) x 42.8 mm(H)
•Weight: 2.4 kg
