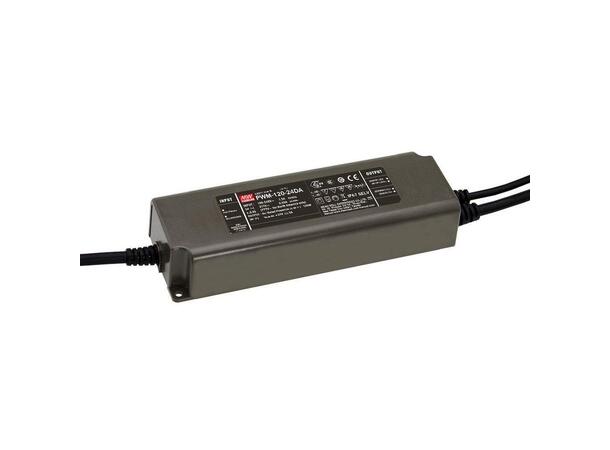

AC-DC Single output LED driver Constant Voltage (CV); PWM output for LED strips; Output 24Vdc at 5A; Dimming with DALI; IP67
Specifications
- Technical data Information
- Series: PWM-120-DA
- RoHS Complian
- Application: LED EN 61347
- Net weight (gram): 940
- Technology: AC/DC
- Constant Voltage C.V.Power Format
- Box Type - Enclosed: Enclosed Plastic housing
- Output Power (W): 120
- Output Voltage (V): 24
- Output Current (A): 5
- Input Voltage (V): 110/230 universal input 90 - 305
- IP Rating: IP67
- Width (mm): 63
- Height (mm): 37.5
- Depth (mm): 191
- Dimming Technology: DALI
- Housing Type: Plastic
