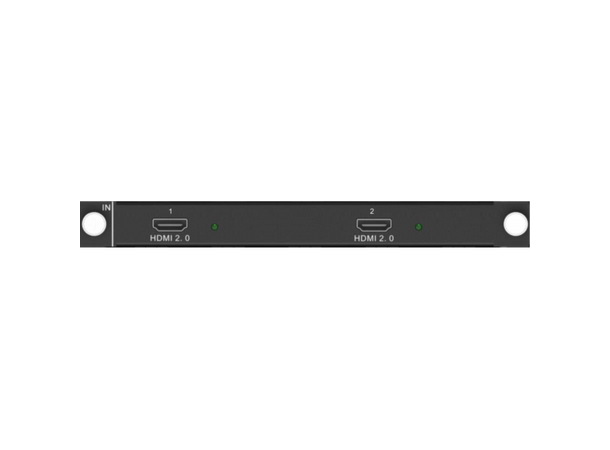

NOVASTAR input card for NOVAH

NOTE: This card can be installed into the slots from I-1 to I-8 only and only in NOVAH15 and NOVAH15PLUS.

• 2x HDMI 2.0
• Backward compatible with HDMI 1.4 and HDMI 1.3
• Each connector supports the maximum resolution of 4096×2160@60Hz or 8192×1080@60Hz (forced)
• Two 4K inputs can be connected at the same time.
• HDCP 2.2 compliant
• Custom resolutions:
  - Max. width: 4092 pixels (4092×2261@60Hz)
  - Max. height: 4095 pixels (2188×4095@60Hz)
• Status LEDs:
  - On: The input source is accessed normally
  - Off: No input source is accessed or the input source is abnormal
