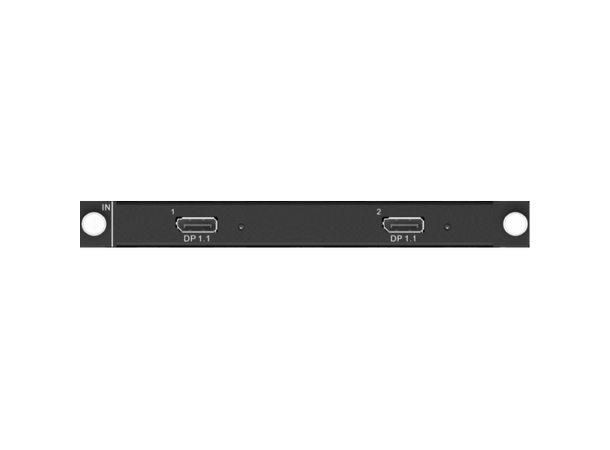

Novastar input card for NOVAH, 2xDP 1.1.
- 2x DP1.1
- Each connector supports the maximum resolution of 3840×1080@60Hz or 3840×2160@30Hz.
- Custom resolutions: max. width: 4096 pixels ( 4096×1124 @60 60Hz), max. height: 4095 pixels ( 1014×40951014×4095@60 Hz).
- Supports 8-bit and 10-bit inputs.
- Does not support interlaced signal input.
- HDCP 1.3 compliant
- Status LEDs:
- On: The input source is accessed normally.
- Off: No input source is accessed or the input source is abnormal.
