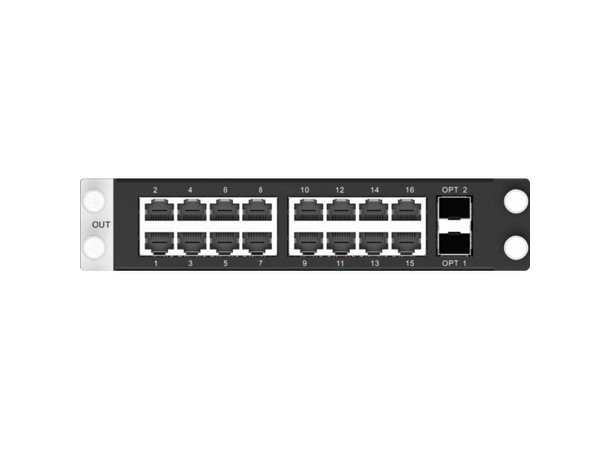

NOVASTAR output card for NOVAH

Novastar output card for NOVAH, 16xRJ45 + 2xoptical fiber.

• LED 4K sending card can load up to 10,400,000 pixels (max. width: 10,240 pixels, max. height: 10,240 pixels).
• This card occupies two slots.
• 16x RJ45 Gigabit Ethernet outputs.
  - Bit depth: 8 8-bit. A single Ethernet port loads up to 650,000 pixels.
  - Bit depth: 10 10-bit A single Ethern et port loads up to 320,000 pixels.
  - Backup between Ethernet ports.
• 2x OPT outputs
  - Support both SMF and MMF transmission.
  - OPT 1 copies and outputs the data on Ethernet ports 1 1-8.
  - OPT 2 copies and outputs the data on Ethernet ports 9 9-16.
