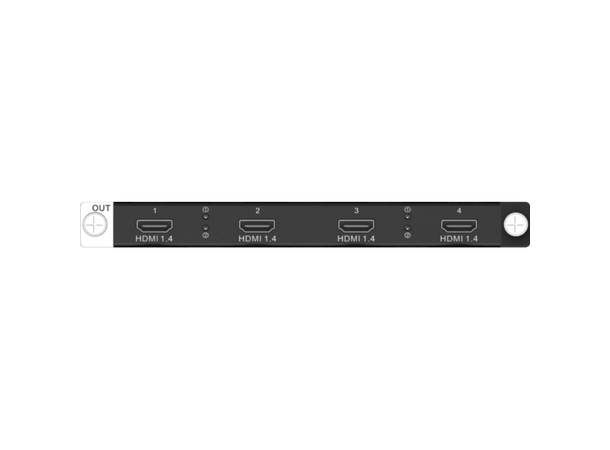

NOVASTAR NOVAHOC6 Output card NOVAH

Novastar output card for NOVAH, 4xHDMI 1.4.

4x HDMI 1.4

Support for single output and dual link output

Single link output:

• Four connectors are all available for output.
• Each connector supports the maximum resolution of 2048×1152@60Hz.
• Custom resolutions:
  - Max. width: 2560 pixels (2560×972@60Hz)
  - Max. height: 2560 pixels (884×2560@60Hz)
• Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
• Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.

Dual link output:

• Connectors 2 and 4 are available for output.
• Connector 1 copies the output on connector 2, and connector 3 copiesthe output on connector 4.
• Each connector supports the maximum resolution of 4096×2160@30Hz/3840×1080@60Hz.
• Custom resolutions:
  - Max. width: 4096 pixels (4096×1124@60Hz)
  - Max. height: 4096 pixels (1014×4096@60Hz)
• Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
• Supports 10-bit RGB 4:4:4/YCbCr 4:4:4 output.

• Status LEDs:
  - On: The output connector is connected normally.
  - Off: The output connector is not connected.
