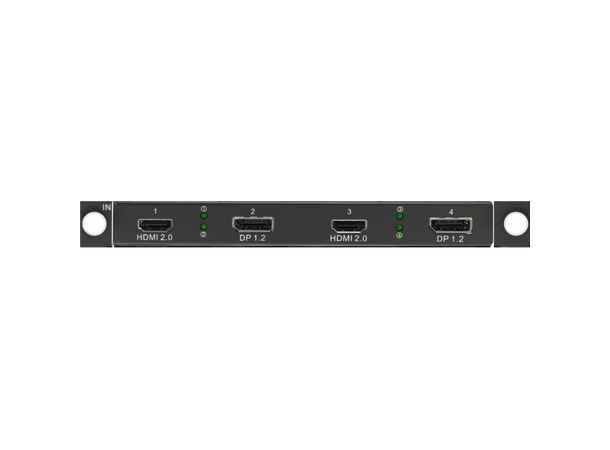

NOVASTAR NOVAHIC14 Input card NOVAH

Novastar input card for NOVAH, 2xHDMI2.0 + 2xDP1.2

This card can be installed into the slots from I-1 to I-8 of the NOVAH15 and NOVAH15PLUS only.
Two group inputs, each group with 1x HDMI 2.0 and 1x DP1.2 connector
Only one connector of each group can be used each time.

Set to use which connector on the Web page. The default option is HDMI 2.0 connector.
Does not support interlaced signal input.

2x HDMI 2.0

• Backward compatible with HDMI 1.4 and HDMI 1.3
• Supports the maximum resolution of 3840×2160@60Hz.
• HDCP 2.2 compliant
• Custom resolutions:
  - Max. width: 4092 pixels (4092×2261@60Hz)
  - Max. height: 4095 pixels (2188×4095@60Hz)

2x DP1.2

• Backward compatible with DP 1.1
• Supports the maximum resolution of 4096×2160@60Hz or 8192×1080@60Hz.
• HDCP 2.2 compliant
• Custom resolutions:
  - Max. width: 8192 pixels (8192×1146@60Hz)
  - Max. height: 4095 pixels (2188×4095@60Hz)
• Status LEDs:
  - On: The input source is accessed normally.
  - Off: No input source is accessed or the input source is abnormal.
