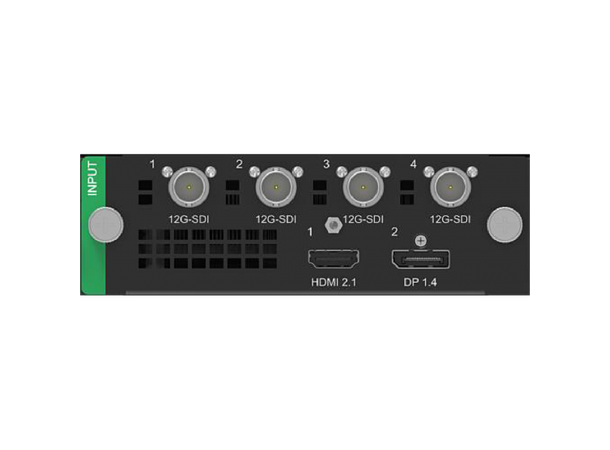

NOVASTAR NOVACX80IC160 Input card

Novastar input card for NOVACX80PRO, 1xHDMI 2.1 + 1xDP 1.4 + 4x12G-SDI.

HDMI 2.1

• Resolutions 7680×4320@(60/50/48/30/25/24Hz) only.
• HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
• EDID management support standard resolutions: 7680×4320@(60/50/48/30/25/24Hz). Do not support custom input resolutions.
• HDCP HDCP 2.3 compliant, backwards compatible.
• Interlaced signal inputs Not supported.

DP1.4

• Resolutions 7680×4320@(30/25/24Hz) only.
• HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
• EDID management Support standard resolutions: 7680×4320@(30/25/24Hz). Do not support custom input resolutions.
• HDCP HDCP 2.2 compliant, backwards compatible.
• Interlaced signal inputs Not supported.

12G-SDI

• Standards Support ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST292 (HD) standard video inputs. Support 3G-Level A/Level B (DS mode).
• Resolutions Max resolution: 4096×2160@60Hz.
• Frame rates Support frame rates up to 60 Hz.
• Mosaic: SDI input sources support input mosaic.
• Interlaced signal inputs Not supported.
• Others: Belden 12G SDI standard cables are recommended. Cables up to 50 meters are supported.
