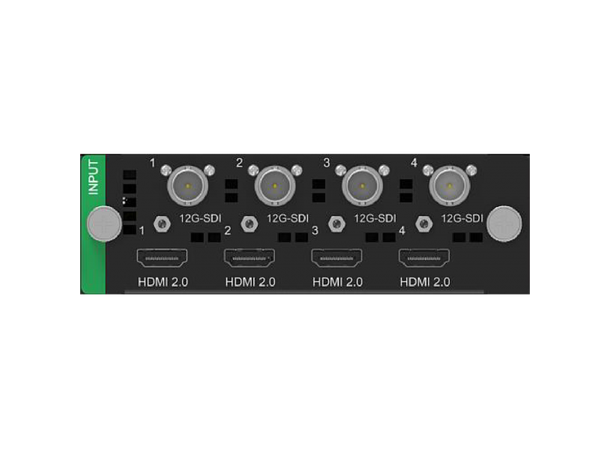

NOVASTAR NOVACX80IC2 Input card

Novastar input card for NOVACX80PRO, 4xHDMI 2.0 + 4x12G-SDI.

HDMI 2.0

• Resolutions Max resolution: 4096×2160@60Hz (Forced), Min resolution: 800×600@60Hz. Max width/height (Forced) Max width: 8192 pixels (8192×1080@60Hz), Max height: 8192 pixels 1080×8192@60Hz).
• Frame rates 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz.
• HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
• EDID management Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
• HDCP 2.2 compliant, backwards compatible.
• Interlaced signal inputs Not supported.


12G-SDI

• Standards Support ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST292 (HD) standard video inputs. Support 3G-Level A/Level B (DS mode).
• Resolutions Max resolution: 4096×2160@60Hz.
• Frame rates Support frame rates up to 60 Hz.
• Mosaic: SDI input sources support input mosaic.
• Interlaced signal inputs Not supported.
• Others: Belden 12G SDI standard cables are recommended. Cables up to 50 meters are supported.
