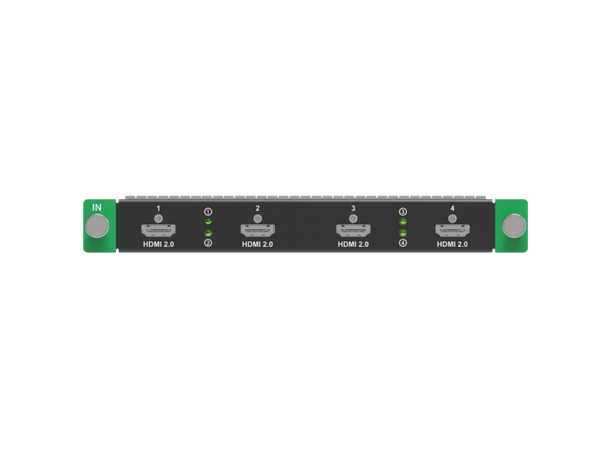

NOVASTAR NOVAMXIC1 Input card NovaMX

Novastar input card for NOVAMX, 4xHDMI 2.0.

HDMI 2.0

• Resolution: Max resolution: 4096×2160@60Hz or 8192×1080@60Hz (Forced), Min resolution: 800×600@60Hz
• Max width/height (Forced): Max width: 8192 pixels (8192×1080@60Hz), Max height: 7680 pixels (1080×7680@60Hz)
• Frame rate 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
• HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.
• Support HLG.
• EDID management: Support standard resolutions, up to 3840×2160@60Hz.
• Support custom input resolutions.
• HDCP 2.2 compliant, backwards compatible with HDCP 1.4/HDCP 1.3.
• Interlaced signal inputs Not supported.
