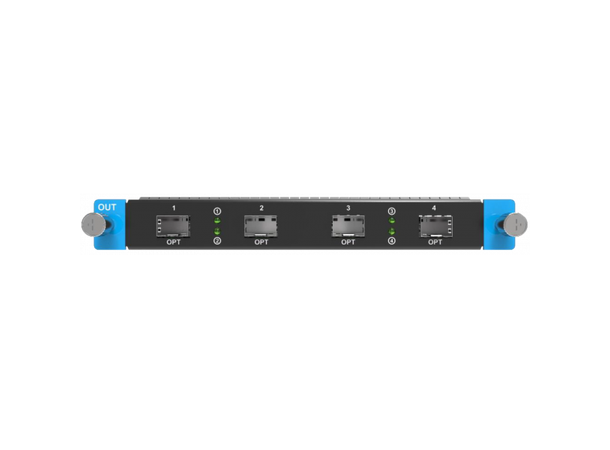

NOVASTAR NOVAMXOC1 Output card NovaMX

Novastar output card for NOVAMX, 4x10G Fiber.

OPT 1-4 - 10G optical ports

• Support single-mode and multi-mode optical fiber modules, with a maximum transmission distance of 10 km.
• A single optical port has the same load capacity of 10x 1G Ethernet ports, and a single card supports up to 40x Ethernet port outputs.
• The maximum load of a single 1G Ethernet port is as follows. Please refer to Ethernet Port Load Capacity for more details:
  - 8bit@60Hz: 659,722 pixels
  - 10bit@60Hz: 494,791 pixels (available only with the A10s Pro receiving card)
  - 10/12bit@60Hz: 329,861 pixels
