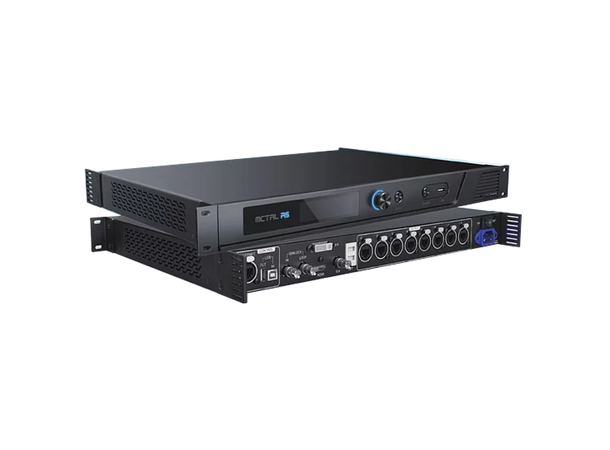

NOVAMCTRLR5 is an independent master controller developed by NovaStar with an epoch-making significance. The loading capacity of a single unit is up to 3840x1080@60Hz, which is able to meet the on-site requirements of oversized LED displays. NOVAMCTRLR5 makes it easier to create stunning rotation visual effects for users.NOVAMCTRLR5 also can be used as two independent Full-HD controllers, which makes it more flexible to load LED displays.The design of NOVAMCTRLR5 is innovative. It allows to configure a display at any time without PC.Various video inputs such as HDMI, dual-link DVI,SDI etc. and outputs of 8-channel Neutrik Gigabit Ethernet ports as well as 2-channel optical fiber ports are supported.
Features
- Complete video input interfaces: 6G SDI, HDMI1.4 x 1, dual-link DVI x 2;
- Supports 8-channel Neutrik Gigabit Ethernet outputs and 2-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840x1080@60Hz;
- Image rotation can be realized at any area in the screen with any angle. It will much eaiser with cabinet, ports and screen rotation operation.
- Innovative design to enable smart configuration which has greatly shortened the time for stage preparation;
- NovaStar's G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering;
- Supports NovaStar's latest pixel-by-pixel calibration technology, the process of which is fast and efficient;
- Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color;
- Screen configuration can be done at any time without PC;
- Manual adjustment of screen brightness, which makes it much easier and quicker;
- Multiple controllers are able to be cascaded for uniform control.
Input
- 1 x SDI: Max. supported resolution:3840×1080@60Hz, Max. width and height are 3840
- 1 x HMDI: Max. supported resolution:3840×1080@60Hz, Max. width and height are 3840
- 2 x Dual link DVI: Max. supported resolution:3840x1080@60Hz and 3840×2160@30Hz
Output
- 8 x RJ45: Neutrik Gigabit Ethernet port
- 2 x OPT: Optical fiber port, single mode and double fiber, LC port, 1310 mm
OPT1 is used for transferring the data of port 1-8
OPT2 is the backup channel of OPT1
Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously
Control
- 1 x ETHERNET: Control interface
- 2 x USB: Control interface of upper computer and cascading interface
Overall Specifications
- Input power: AC 100-240V, 50/60Hz
- Overall power consumption: 25W
- Operating temperature: -20~60%u2103
- Dimensions(L×W×H): 482.6×330×45 mm
- Weight: 4.6 kg
