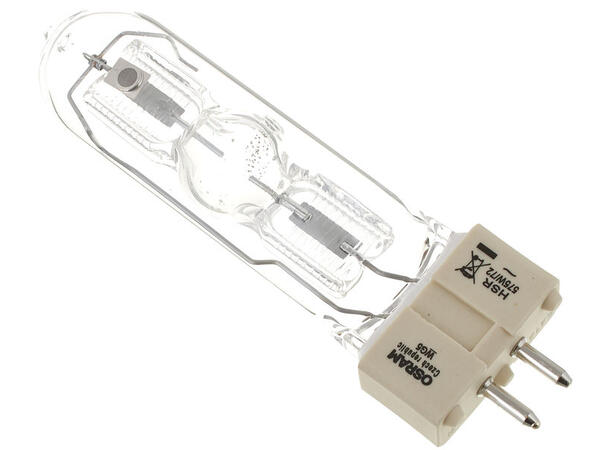

Technical Data

Electrical data

• Nominal wattage: 575.00 W
• Nominal voltage: 97.5 V
• Lamp voltage: 95 V
• Nominal current: 7.00 A
• Lamp current: 6.1 A

Photometrical data

• Nominal luminous flux: 49000 lm
• Luminance: 10000 cd/cm²
• Color temperature: 7200 K
• Luminous efficacy: 85 lm/W

Dimensions & weight

• Diameter: 30.0 mm
• Length: 125.0 mm
• Light center length (LCL): 65.0 mm

Lifespan

• 1000 h

Additional product data

• Base (standard designation): GX9.5

Capabilities

• Burning position: Other

Certificates & standards

• EEI – Energy Label: B
