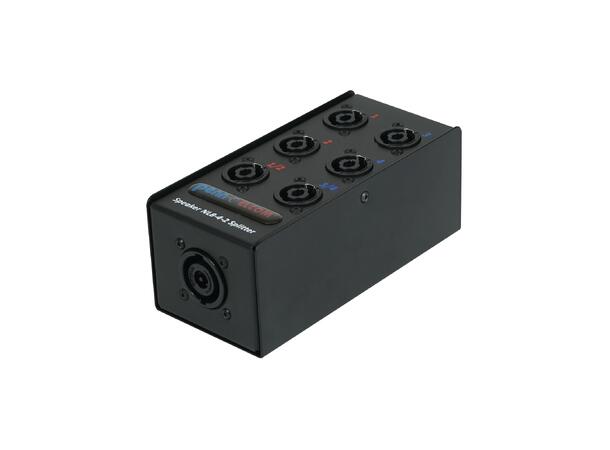

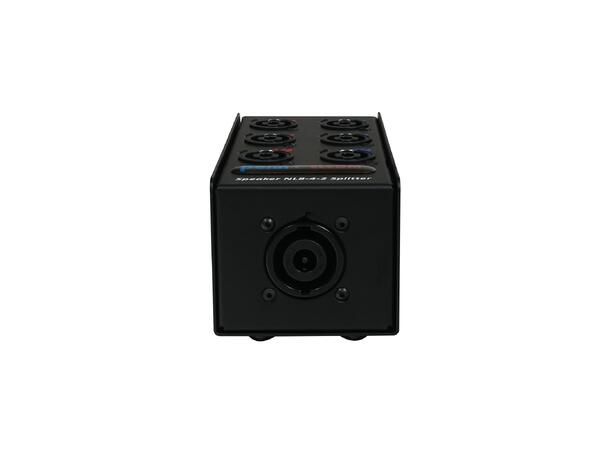

PENN ELCOM 6-Way Speakon splitter

Made with high-grade steel, this slim profile drop box is ideal for running a single NL8 cable from your amplifier rack to your speaker stack. This model offers two extra NL4 outputs for speakers on 4 core to break out in the box. Enables the use of short link leads from the box to speakers for improved cable management, shorter lengths and less derigging time. Can be used as a single box per stack or multiple boxes chained for larger stacks or custom wired for many pin or pin swap options.

• Input: 1 x NL8
• Output: 2 x NL4 wired 4-pole, 4 x NL4 wired 2-pole
• NL8MP input running from +1-1, 2, 3 and 4 wired to 2 x NL4's on pins +1-1 and 2 going to the 4 x NL4’s on pin +1-1
