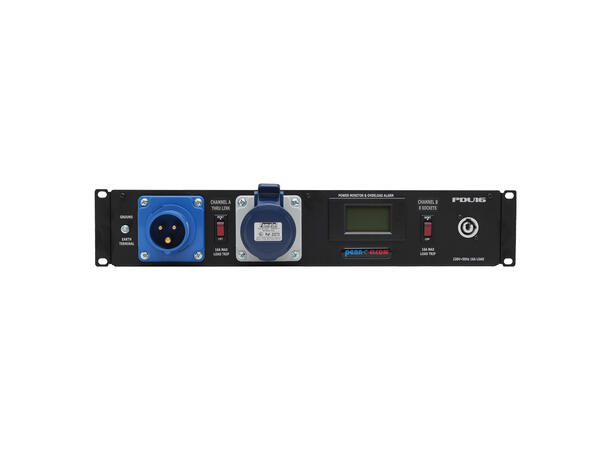

2U 16amp Rack mount PDU with power monitor Pair of C-FORM sockets with overload trip switch. 8 x Neutrik PowerCon Outlet sockets with 16A overload trip switch. Ideal solution for fast power distribution in stage, studio, and touring environments.

Circuit A:
- Main input: C-FORM 240V 16A IP44 Panel mount appliance inlet
- Protection: Illuminated circuit breaker overload protection between dual 16A sockets
- Output: C-FORM 240V 16A IP44 Panel mount appliance Outlet
- Circuit B

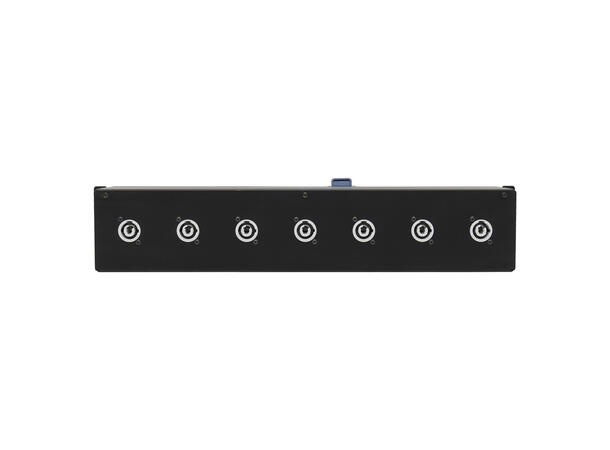

- Output: 8 Neutrik powerCon sockets with a Maximum Combined Load 16A
- Protection: Illuminated Circuit Breaker 16A overload protection
- LCD Monitor: LCD ower monitor giving voltage, current , power, energy levels & overload alarm
- Earth link: M4 screw terminal for rackgrounding

- Nominal voltage: 110V-240V
- Usable voltages 110V~240V full range
- Frequency: 50/60HZ full range
- Max. A/C output: Current 16A
- Case size: 89 x 485 x 159mm
- Weight: 2.6kg
