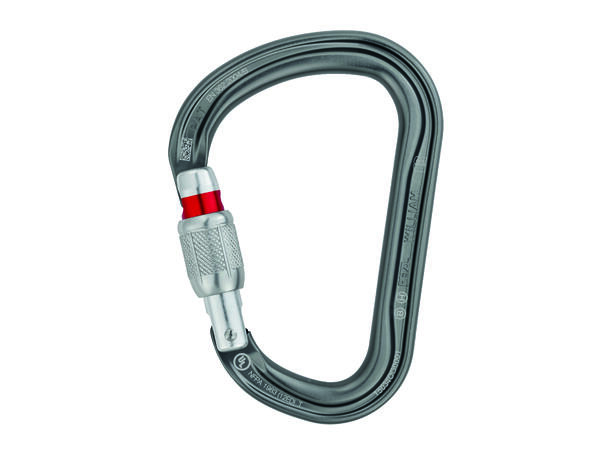

Lightweight asymmetrical large-capacity carabiner
The lightweight WILLIAM large-capacity asymmetrical carabiner is made of aluminum. It has a pear shape that is practical for easily connecting multiple items. Its fluid interior design and Keylock system facilitate handling. The WILLIAM carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK, or the manual SCREW-LOCK. WILLIAM can be used with the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Description
Pear shape offers a large capacity and wide opening:
- facilitates connection of multiple items
- allows a Munter hitch to be easily created in case of retreat
Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Available in three different locking systems:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)
Specifications
Material(s): aluminum
Certification(s): CE EN 362, EAC, NFPA 1983 Technical Use
References
|
References |
M36A TL |
M36A BL |
M36A SL |
M36A TLN |
M36A SLN |
M36A TLY |
|
Weight |
90 g |
90 g |
85 g |
90 g |
85 g |
90 g |
|
Locking system |
TRIACT-LOCK |
BALL-LOCK |
SCREW-LOCK |
TRIACT-LOCK |
SCREW-LOCK |
TRIACT-LOCK |
|
Color(s) |
gray |
gray |
gray |
black |
black |
gold |
|
Major axis strength |
27 kN |
27 kN |
27 kN |
27 kN |
27 kN |
27 kN |
|
Minor axis strength |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
|
Open gate strength |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
8 kN |
|
Gate opening |
27 mm |
27 mm |
28 mm |
27 mm |
28 mm |
27 mm |
|
Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
|
Inner Pack Count |
1 |
1 |
1 |
1 |
1 |
1 |
|
References |
M36A BLY |
|
Weight |
90 g |
|
Locking system |
BALL-LOCK |
|
Color(s) |
gold |
|
Major axis strength |
27 kN |
|
Minor axis strength |
8 kN |
|
Open gate strength |
8 kN |
|
Gate opening |
27 mm |
|
Guarantee |
3 years |
|
Inner Pack Count |
1 |
