AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.
Features:

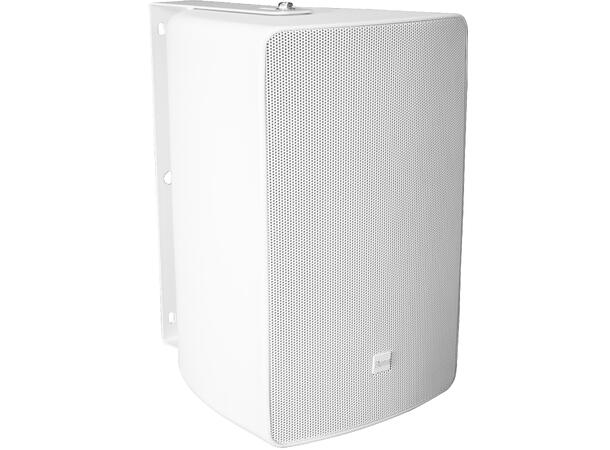

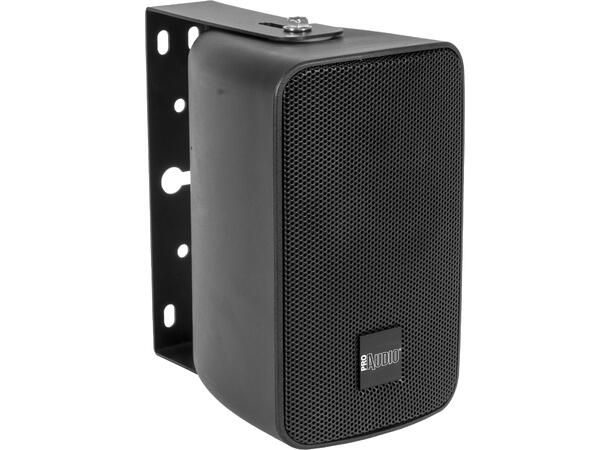

Vertically or horizontally mounted with the brackets /supplied supports
Tested to withstand snow, rain and salt
Suitable for use on the boat
The AIR04X 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used in combination with DAD ARK208 sub.
The polypropylene cabinet provides complete protection against ultraviolet rays.

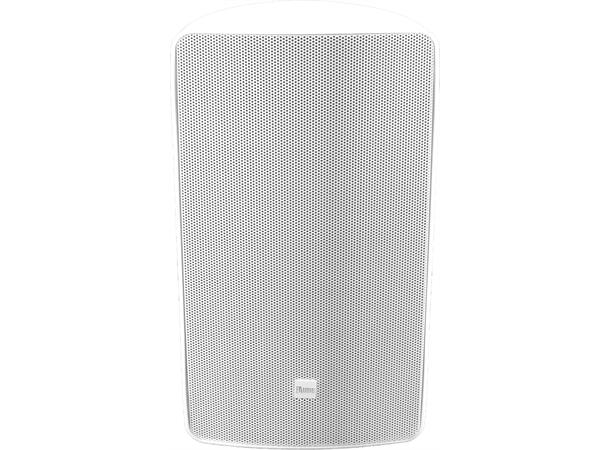

The grid is made of perforated aluminium, internally lined with waterproof fabric and open cell polyurethane foam.

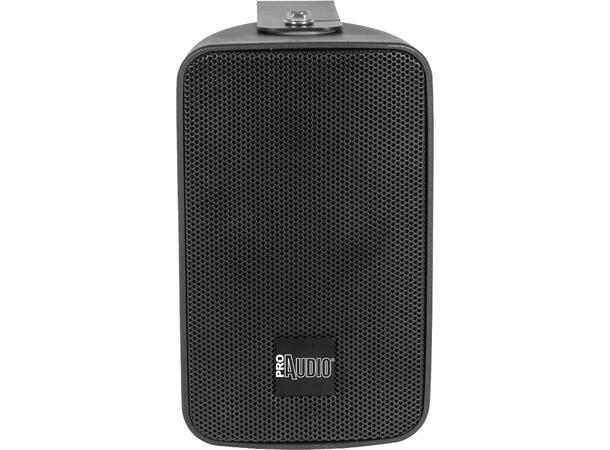

The PROAUDIO logo can be rotated for vertical or horizontal installation.
PHYSICAL
IP rating: 46 for outdoor events
Dimensions (WxHxD): 141x230x170mm
Weight: 2.6kg
LOUDSPEAKERS
System type: passive 2 way
COMPONENTS
Low frequency: 4'' woofer/1''v.c.
High frequency: 1'' dome tweeter/0.8''v.c.
ACOUSTICAL SPECIFICATIONS
Sensitivity: 88dB
Impedance: 16
SPL cont/peak: 103/109dB
Frequency response: 75-20.000Hz
Coverage angle HxV: 120x90°
Cross over frequency: 3500Hz
Protection: H.F. signal compression
Suggest HPF range: 160/180Hz
Recommended amplifier up to: 200W
INPUT/OUTPUT CONNECTORS

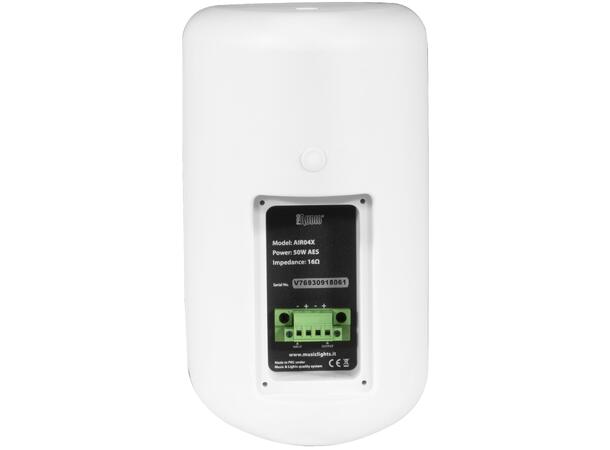

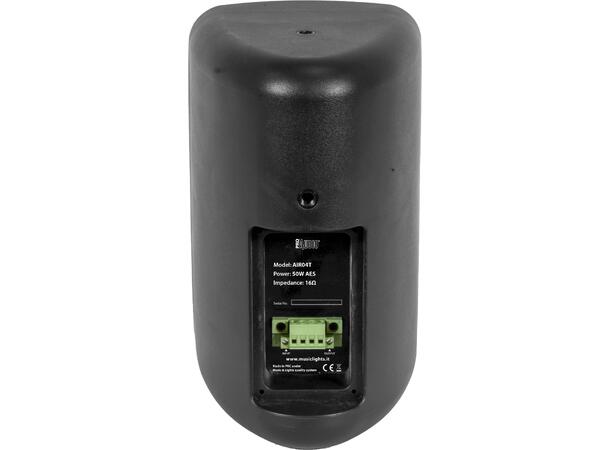

Screw terminal IN/OUT: phoenix
CABINET CONSTRUCTION
Cabinet material: polypropilene

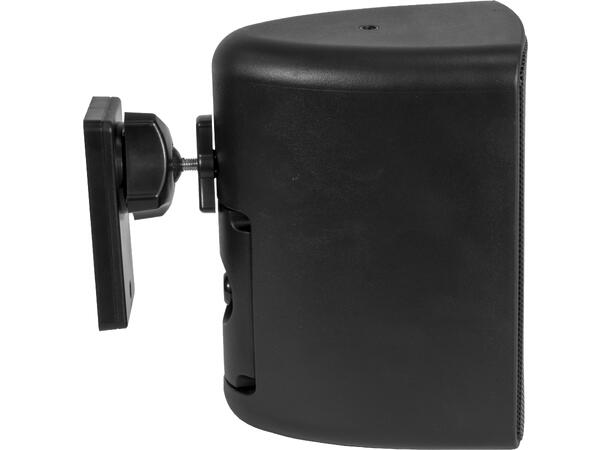

Sospension system: wall brackets (included)
FEATURES
AES/program power: 50/100W
SPL max: 109dB @1m (free field)
