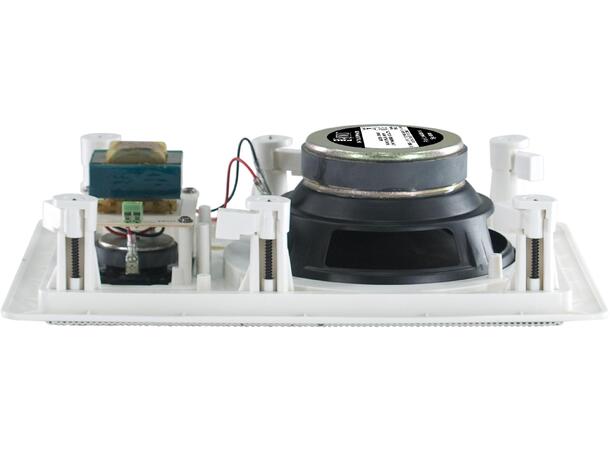

Ceiling speaker for recessed mounting, ideal for high fidelity audio reproduction.
Features:

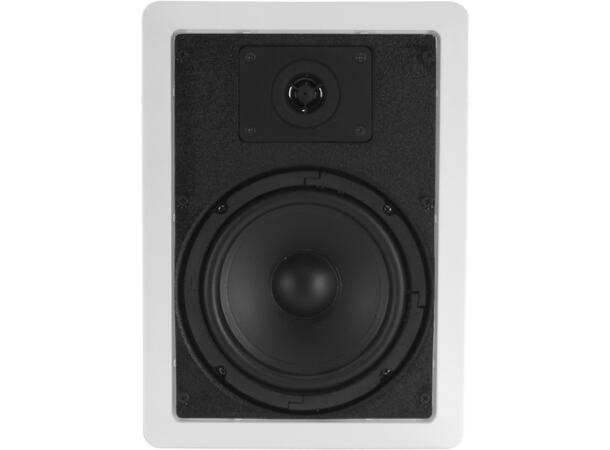

Woofer with the diaphragm made of treated cellulose fibre.
Dome tweeter with Mylar diaphragm and coil cooled by the ferrofluid.

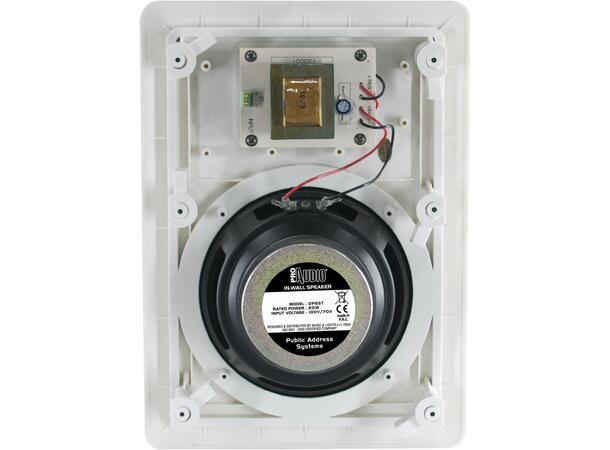

Line transformer for 70/100 V constant voltage systems.

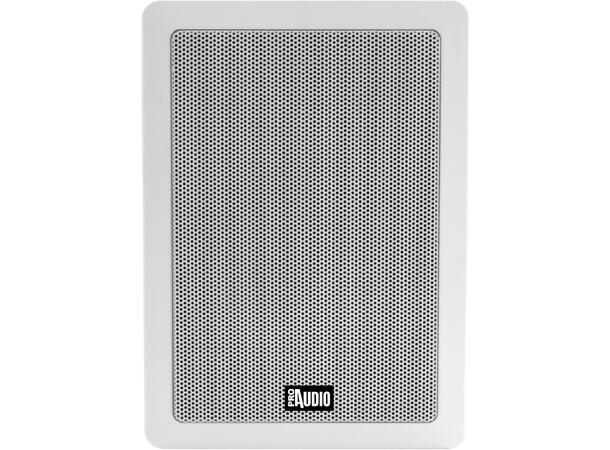

White ABS body and metal protection grid.
Quick and easy installation by a special holding system, with no need of screws or other attachment elements.
LOUDSPEAKER
System type: ceiling speaker
COMPONENTS
Low frequency: 6.5''
High frequency: 1''
FEATURES
AES/program power: 30/60W
Input 100 V: 30W
ACOUSTICAL SPECIFICATIONS
Sensitivity: 91dB @1W/1m (free field)
Constant voltage: 70/100 V
Frequency response: 100÷20.000Hz (±3dB)
INPUT/OUTPUT CONNECTORS
Input signal: terminal clamp
PHYSICAL
Dimensions (WxHxD): 305x216x82mm
Weight: 1.92kg
Flush-mounting dimension (WxH): 272x185mm
