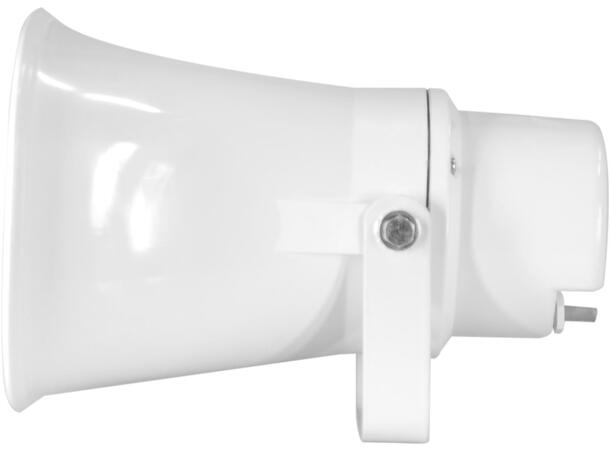

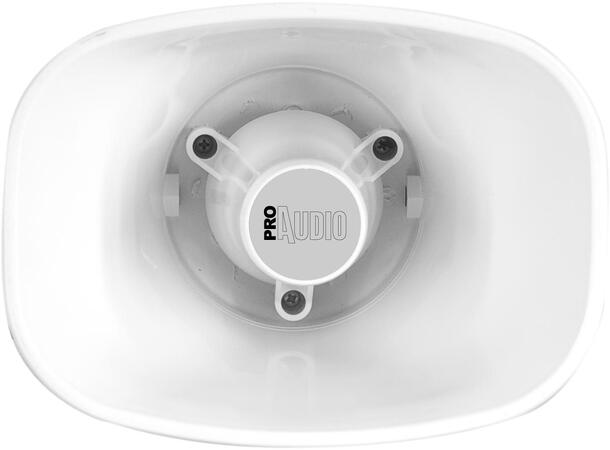

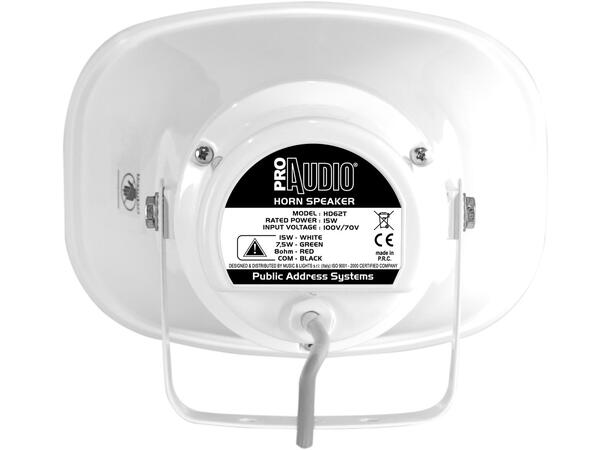

Compact horn speaker with a driver, high directivity and efficiency, ideal for intelligible sound and vocal reproduction.

Features:
Working in 8 Ohm lines or in 70/100V constant voltage lines thanks to the built-in transformer.
Hi-pass filter to protect driver against out-of-range low-frequencies.
IP66 construction for indoor-outdoor environmental temperatures between -25°C to 70°C.
Body in UV-stabilized ABS, white colour.
Steel fixing base included.

LOUDSPEAKER
System type: compact horn speaker

COMPONENTS
High frequency: 1.7''

FEATURES
AES/program power: 15/30W
Input 100 V: 7.5/15W

ACOUSTICAL SPECIFICATIONS
Sensitivity: 106dB @1W/1m (free field)
Impedance: Low impedence 8 Ohm
Constant voltage: 70/100 V
Frequency response: 275÷7000Hz (±3dB)

INPUT/OUTPUT CONNECTORS
Input signal: terminal with wire

PHYSICAL
IP rating: 66
Dimensions (WxHxD): 222x166x232mm
Weight: 1.36kg
