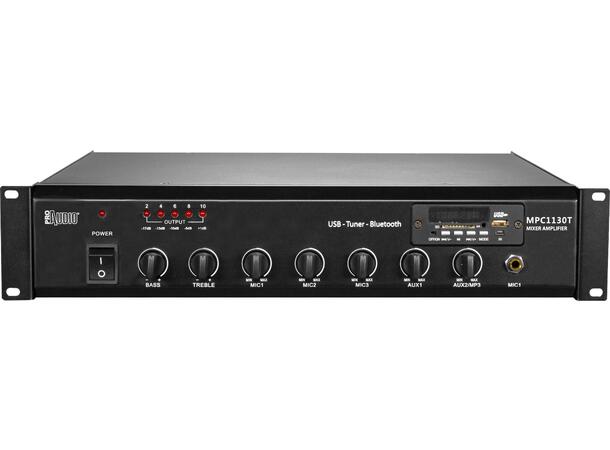

Mixer-amplifier with FM tuner, Bluetooth, and MP3/USB/SD card player designed for mixing and broadcasting voice announcements and music in PA systems.
Features:
Low impedance outputs (4-16 Ohm) or constant voltage outputs (70/100 V).
6 Inputs: 3 Mic, 2 Aux, 1 USB.
Built-in FM tuner and MP3/USB player.
1 line output.
Priority function.
Independent level controls for input signals.
2U 19” standard rack.
AMPLIFIED MIXER
Channels: 1
Circuit class: Analog
OUTPUT
Power at constant voltage (70/100V): 130W
Power at low impedance (4 Ohm): 130W
AUDIO SPECIFICATIONS
Frequency responce: 60 - 15000Hz @ 8 Ohm (±0.5 dB)
THD+N: <0.5%
Input impedance: 10kO
Signal/Noise rate: >73dB
POWER SUPPLY STAGE
Type: Trasformer
Operating voltage/frequency: 220/240V, 50/60Hz
PROTECTIONS
Output: Soft-start, short circuit, DC, overheat
FUNCTIONS
Media player: MP3/USB/SD/FM tuner/Bluetooth
Tone controls output: 100 Hz, 12kHz (±10dB)
Input volume control: mic1, mic2, mic3, aux1, aux2
Output volume control: Automatic mute for announcements (mic1)

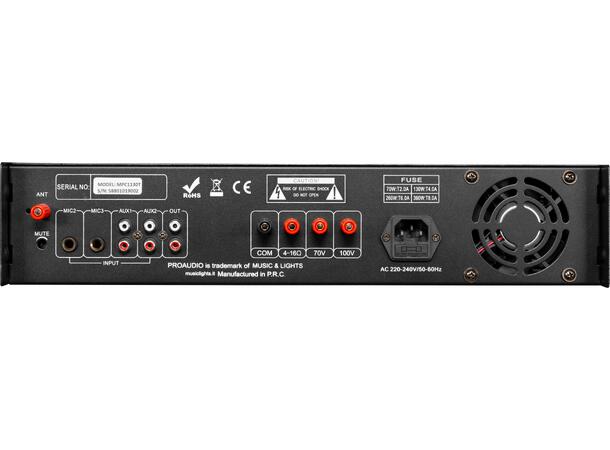

INPUT/OUTPUT CONNECTORS
Input signal: XLR/Jack bal. pin RCA unbal
Output signal: screw terminal block
Power connection: VDE
PHYSICAL
Dimensions (WxHxD): 483x89x366mm
Rack unit: 2
Weight: 11.4kg
