Stereo mixer pre- amplifier (8 IN & 4 OUT).
Features:

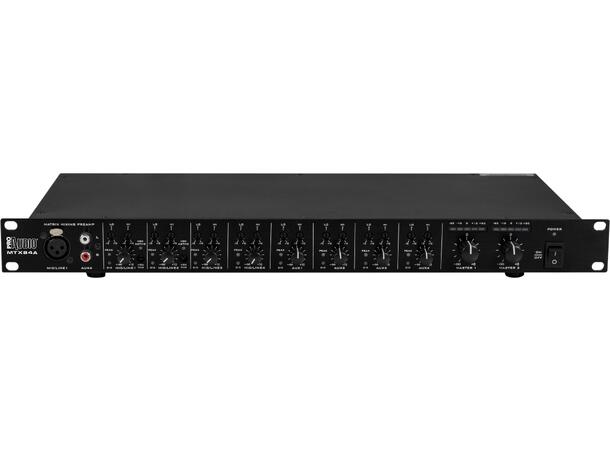

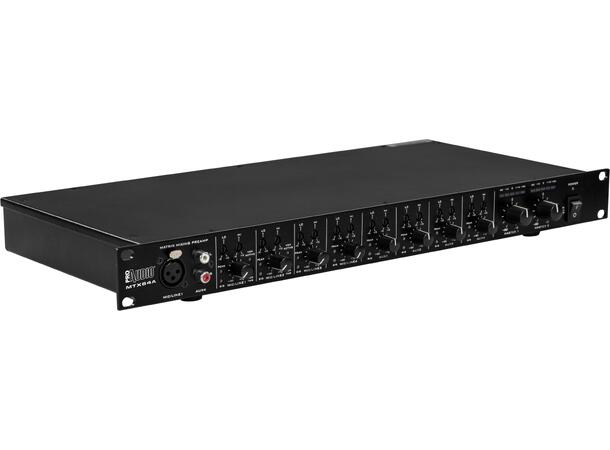

Standard machine cabinet type 1 U height design, black aluminium front panel.
4 MIC/LINE XLR balanced inputs, providing a 48 V phantom power switch.
4 AUX accessory unbalanced inputs.
Each channel is equipped with volume control and tone control.
Signal/peak value LED light monitors the input level of every channel.
The panel provides one channel of MIC/LINE input in addition, parallel connected with MIC/LINE1.

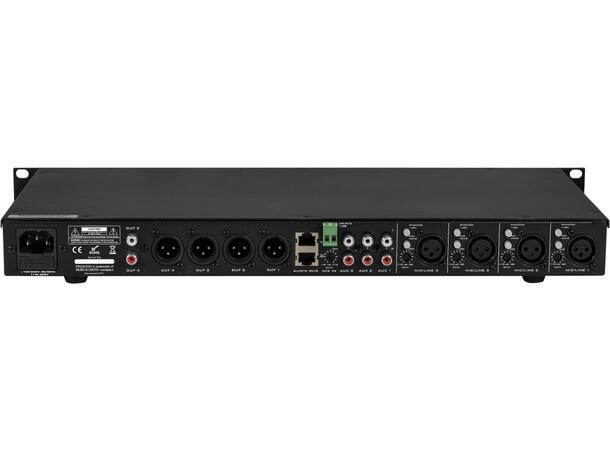

4 XLR balanced outputs, in parallel connection with 2 channels of RCA unbalanced outputs.
PRE-AMPLIFIER
Type: Stereo Mixer (8 input, 4 output)
AUDIO SPECIFICATIONS
Output level/impedance: 1V/600Ohm balanced
Frequency responce: 20- 20000Hz @ 8 Ohm (±1 dB)
THD+N: <0.1%
Input impedance: 20kO
Signal/Noise rate: >75 (line) >60 (mic)dB
POWER SUPPLY STAGE
Type: Switching
Operating voltage/frequency: 100/240V, 50/60Hz
FUNCTIONS
Input sensitivity: mic. 2.5 mV, line 250 mV, aux RCA 400mV
HPF selector: 200,Hz 12dB/octave
Tone controls input: 100 Hz, 10kHz (±15dB)
Tone controls output: 100 Hz, 10kHz (±15dB)
Phantom power: Mic1,2,3,4, +48
INDICATORS
Indicators: sig, peak for each in and sig, -20dB, -10dB,0dB - clip for each out
INPUT/OUTPUT CONNECTORS
Input signal: XLR/Jack bal. pin RCA unbal
Output signal: XLR/Jack bal. pin RCA unbal.
Power connection: VDE
PHYSICAL
Dimensions (WxHxD): 484x52x238mm
Rack unit: 2
Weight: 3.9kg
