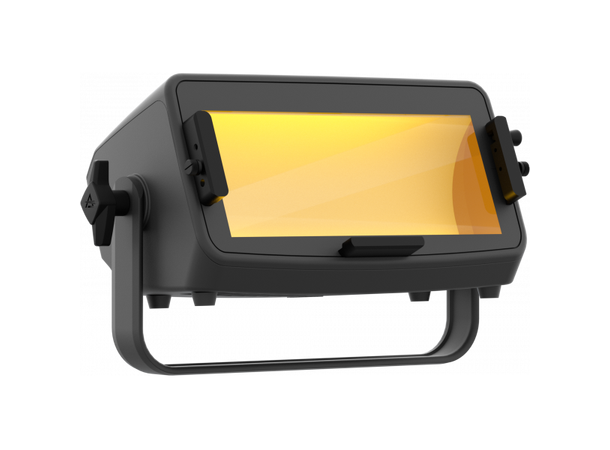

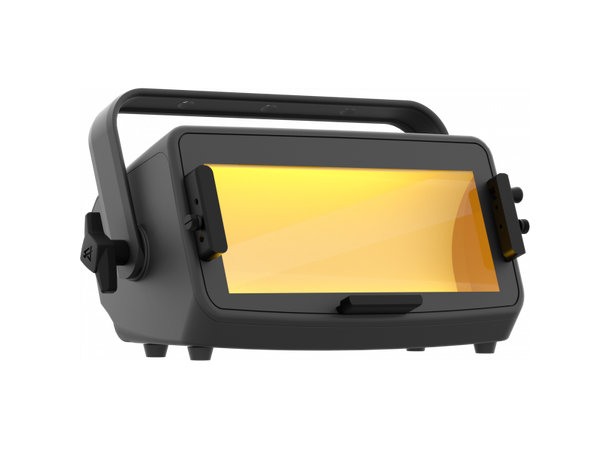

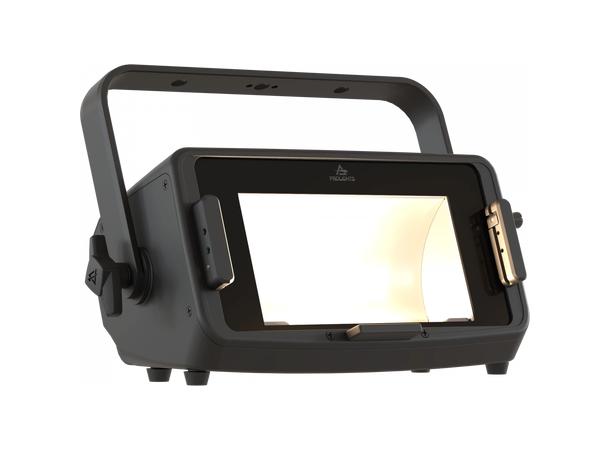

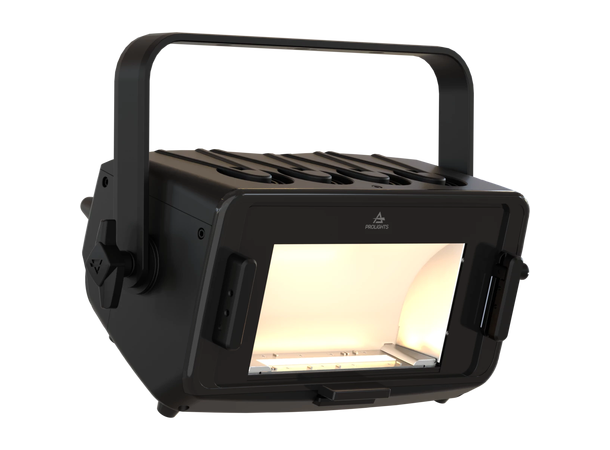

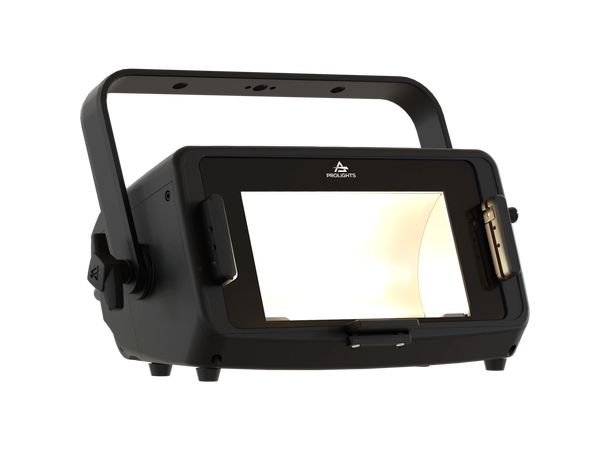

The EclExpo Flood300VW is a variable white LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires.
The EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.
Its unique design and performance set a new standard for exhibition floodlights.
Features:
- 300W Variable White LED source, from 2,700K to 6,500K
- Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
- Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
LIGHT SOURCE
- Source: 300W Variable White LED
- CCT: 2.700 K - 6.500K
- Luminous flux: @2.700K 7'690 lm; @6.500K 10'877 lm; @full 13'044lm
- Lux: @2.700K 72 lx; @6.500K 101 lx; @full 121lx @5 m
- CRI: 97,7 @2.700 K; 95,6 @6.500 K; 94,9 @full
- R9: 84,9 @2.700 K; 86,7 @6.500 K; 82,8 @full
- TLCI: 97 @2.700 K; 97 @6.500 K; 97 @full
- TM30 Rf: > 95 @2.700 K; > 91 @6.500 K; > 92 @full
- TM30 Rg: < 102 @2.700 K; < 102 @6.500 K; < 104 @full
- Source life expectancy: > 20.000 h
OPTICS
- Optics: asymmetrical beam reflector in pure aluminium 99,6%
- Beam angle: (H) 100° x (V) 60°
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K - 6.500K
- Colour wheel: built-in white presets
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of intensity and CT from knob
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
- Other: see available accessories
CONTROL
- Protocols: DMX512, RDM
- Stand Alone: 2 rotatory knobs
- DMX channels: 1 / 2 / 3 / 5 / 11channel

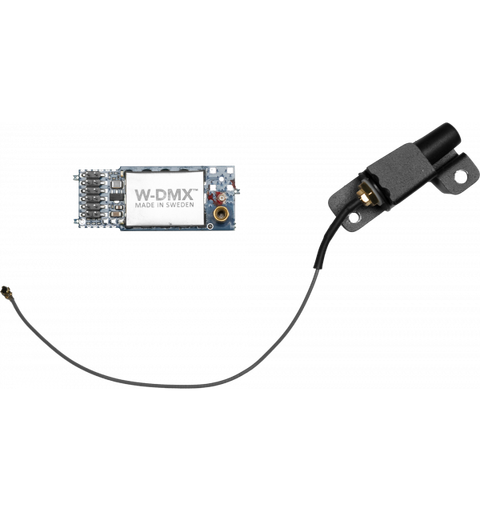

- Wireless Control: optional, Lumen Radio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 300W
- Output (at 230V): 8 units on a single power line
- Power factor: > 0,97
PHYSICAL
- IP rating: 20

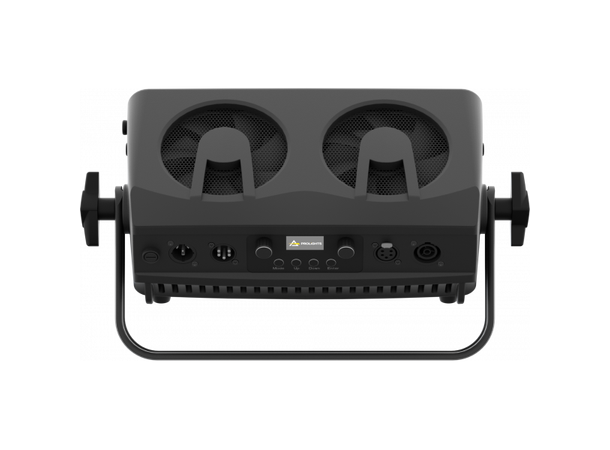

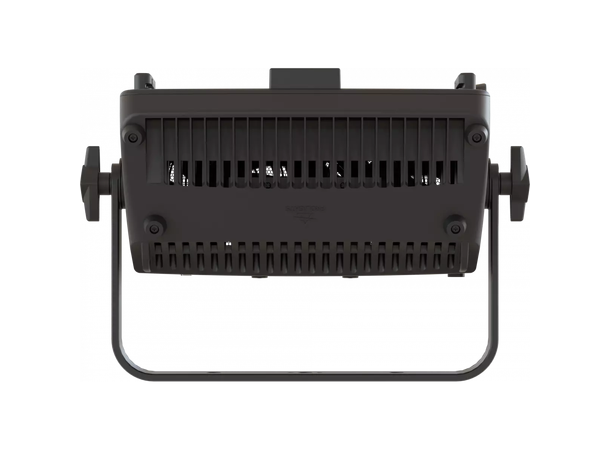

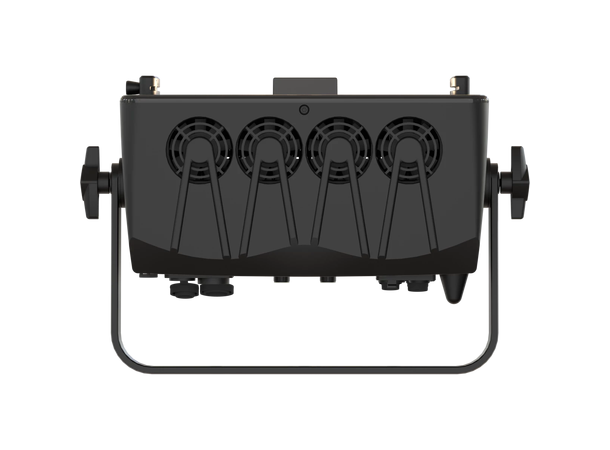

- Cooling: active, silent operation

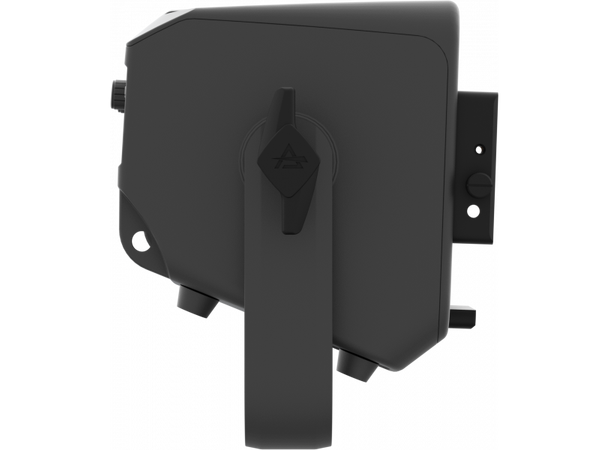

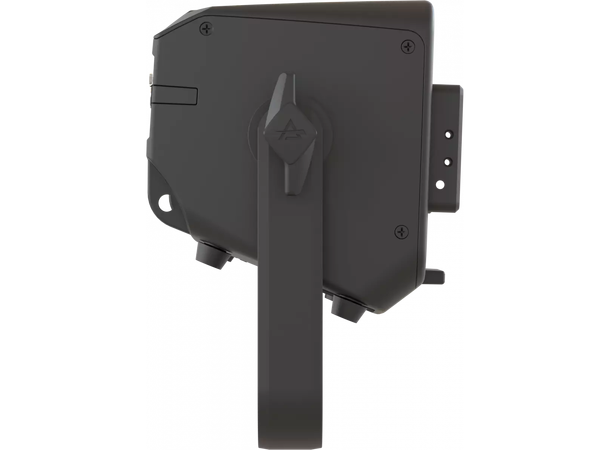

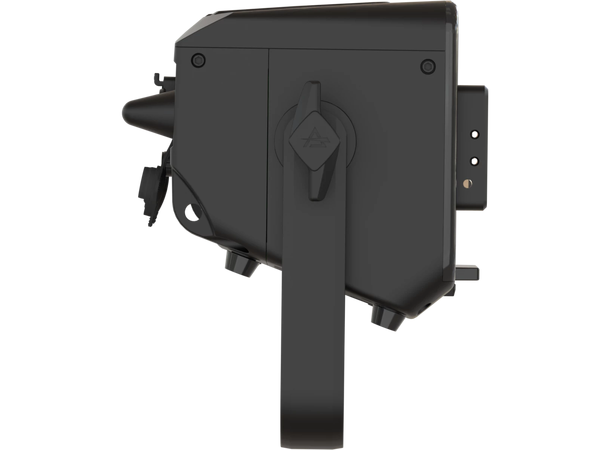

- Suspension and fixing: bracket for hanging and positioning

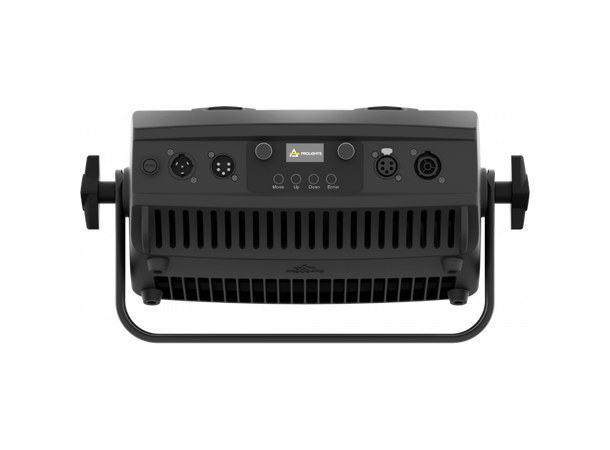

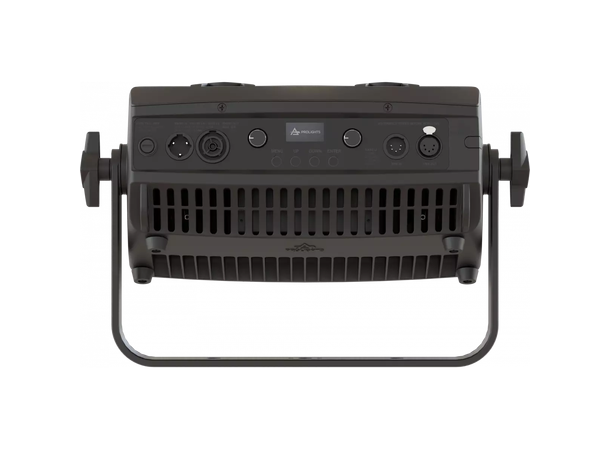

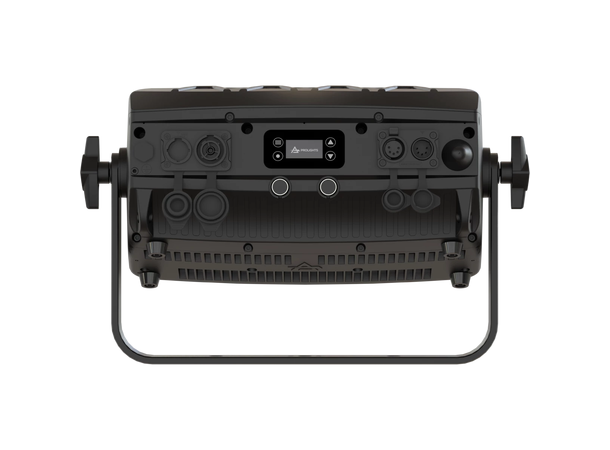

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

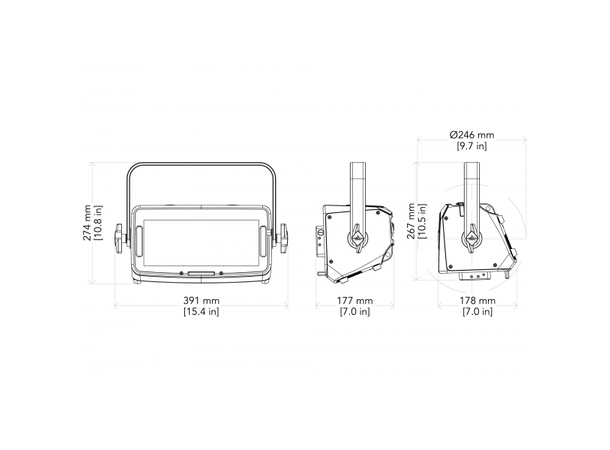

- Dimensions (WxHxD): 391x247x210mm
- Weight: 5,1kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ECLEXPOFL300VW
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- User Manual
