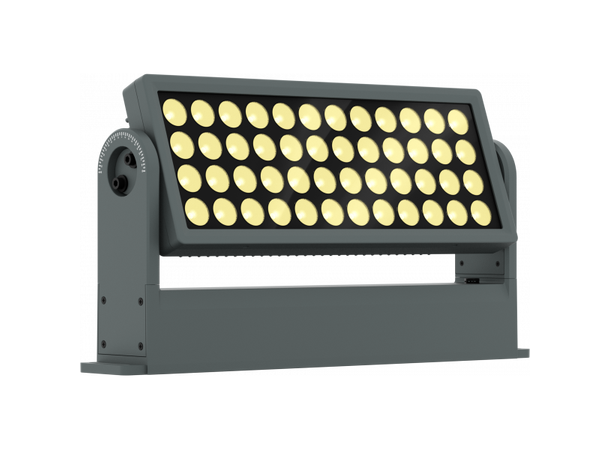

ArcPod 48VW is a compact high-power exterior wash light featuring an outstanding brightness of 46'000 lumens. It is equipped with 48x10W VW LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48VW an incredibly flexible and versatile device for any outdoor install.
Features:
48x10W VW LEDs
LED emitters controllable in 4 sections
Compact form factor and fanless
LIGHT SOURCE
- Source: 48x10W Warm White + Cold White LEDs
- Luminous flux: (15°) 25'309 lm; (15°+20°) 24'786 lm; (15°+30°) 24'628 lm; (15°+40°) 24'658 lm; (15°+60°) 24'204 lm; (15°+80°) 23'372 lm; (15°+10°x60°) 46'553 lm; (15°+30°x60°) 27'287lm @full
- Lux: (15°) 19'746 lx; (15°+20°) 3'992 lx; (15°+30°) 2'485 lx: (15°+40°) 1'310 lx; (15°+60°) 906 lx; (15°+80°) 585 lx; (15°+10°x60°) 3'470 lx; (15°+30°x60°) 1'578lx @3 m full
- CRI: 81,3 @ WW; 83.5 @ CW; 86,2 @ full
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 10°
- Field angle: 20°
- Additional optics: see available accessories
- COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K ~ 6.500K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- FX generator: up to 4 linear controllable sections
- Static mode: selection of static colour
- BODY
- Tilt angle: 0 ~ 130° with manual regulation
- Body: sturdy die-cast aluminium body
- Body colour: RAL 7012
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 3 / 5 / 11 / 14channel
- Pixel control: up to 4 linear controllable sections
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 ~ 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Max power consumption:
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 520W
- Max power consumption (at 120V): 552W
- Output (at 230V): 4 units on a single power line
- Output (at 120V): 2 units on a single power line
- Power factor: 0,96
PHYSICAL
- IP rating: 66 for outdoor installations
- IK rating: 08
- Cooling: passive cooling and fan-free
- Adaptors: XLR and BARE END 16A adaptors included

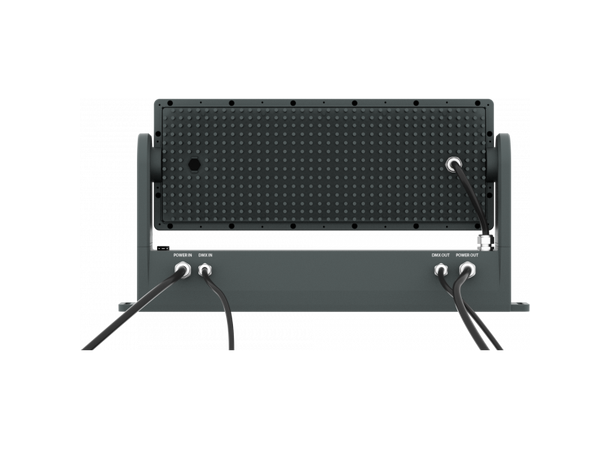

- Signal connection: moulded IP signal IN/OUT connectors
- Power connection: moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 584x304x93mm
- Weight: 14kg
- CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ARCPOD48VW
- 1 x BARE END - IP connection adapter
- 1 x 5p XLR - IP connection male adapter
- 1 x 5p XLR - IP connection female adapter
- User Manual
