NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

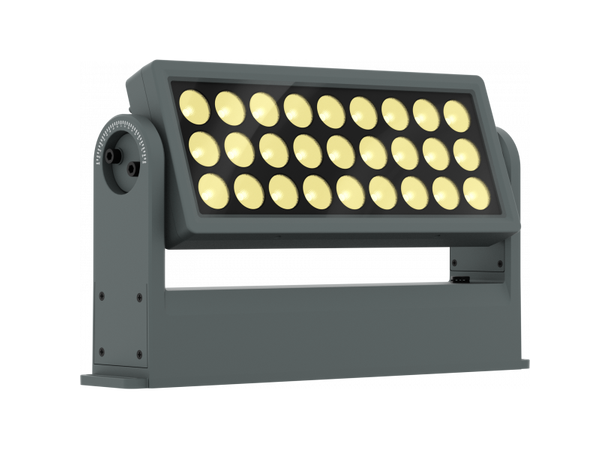

ArcPod 27VW is a compact high-power exterior wash light featuring an outstanding brightness of 26'000 lumens. It is equipped with 27x10W VW LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27VW an incredibly flexible and versatile device for any outdoor install.
Features:27x10W VW LEDs
LED emitters controllable in 3 linear sections
Compact form factor and fanless
LIGHT SOURCE
- Source: 27x10W Warm White + Cold White LEDs
- Luminous flux: (15°) 16'036 lm; (15°+20°) 14'121 lm; (15°+30°) 13'204 lm; (15°+40°) 14'030 lm; (15°+60°) 13'811 lm; (15°+80°) 12'534 lm; (15°+10°x60°) 26'122 lm; (15°+30°x60°) 16'195lm @full
- Lux: (15°) 13'390 lx; (15°+20°) 2'353 lx; (15°+30°) 1'415 lx: (15°+40°) 743 lx; (15°+60°) 492 lx; (15°+80°) 331 lx; (15°+10°x60°) 1'989 lx; (15°+30°x60°) 963lx @3 m full
- CRI: 81,9 @ WW; 84 @ CW; 86,7 @ full
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 10°
- Field angle: 20°
- Additional optics: see available accessories
- Other: barn doors not included
COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control through dedicated DMX channel
- White presets: 2.700 K ~ 6.500K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- FX generator: up to 3 linear controllable sections
- Static mode: selection of static colour
BODY
- Tilt angle: 0 ~ 130° with manual regulation
- Body: sturdy die-cast aluminium body
- Body colour: RAL 7012
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 3 / 5 / 11 / 11channel
- Pixel control: up to 3 linear controllable sections
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 265W
- Output (at 230V): 9 units on a single power line
- Power factor: 0,98
PHYSICAL
- IP rating: 66 for outdoor installations
- IK rating: 08

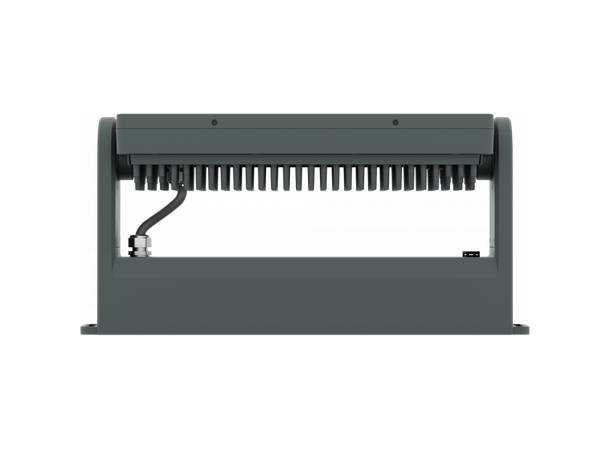

- Cooling: passive cooling and fan-free
- Adaptors: XLR and BARE END 16A adaptors included

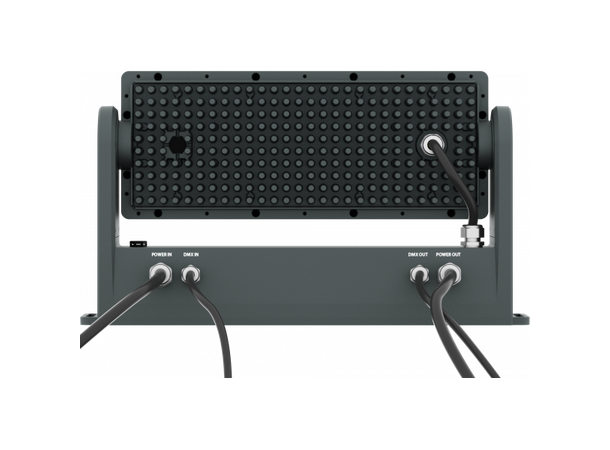

- Signal connection: moulded IP signal IN/OUT connectors
- Power connection: moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 455x258x83mm
- Weight: 9kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT- 1 x ARCPOD27VW
- 1 x BARE END - IP connection adapter
- 1 x 5p XLR - IP connection male adapter
- 1 x 5p XLR - IP connection female adapter
- User Manual
