NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

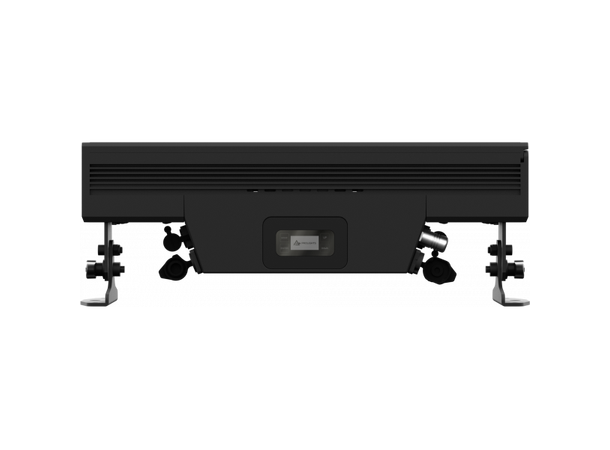

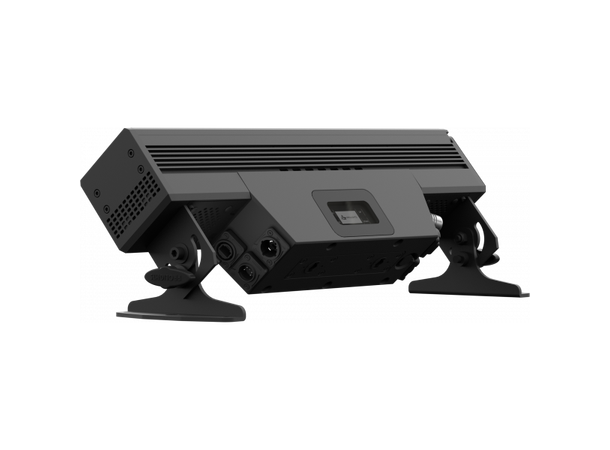

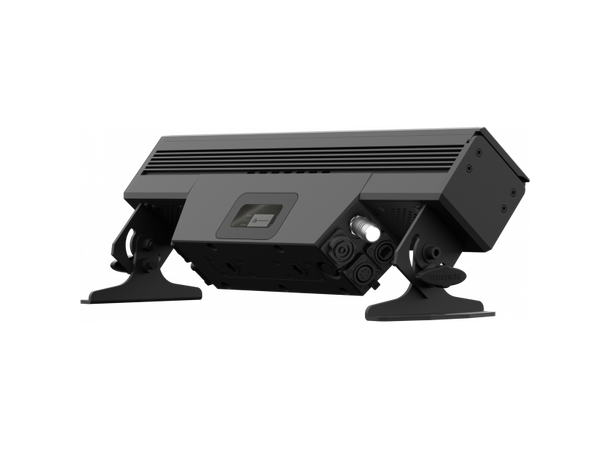

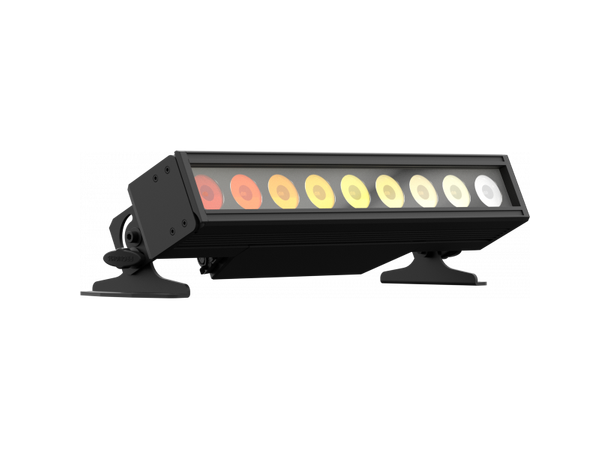

The LumiPix XB is a family of IP65 rated, pixel-controlled linear LED fixtures.
The units are available in 100 cm (18 pixels) and 50 cm (9 pixels) - the 20W RGB + Warm White LEDs deliver a punchy beam of light with bright, vibrant colours and high CRI.

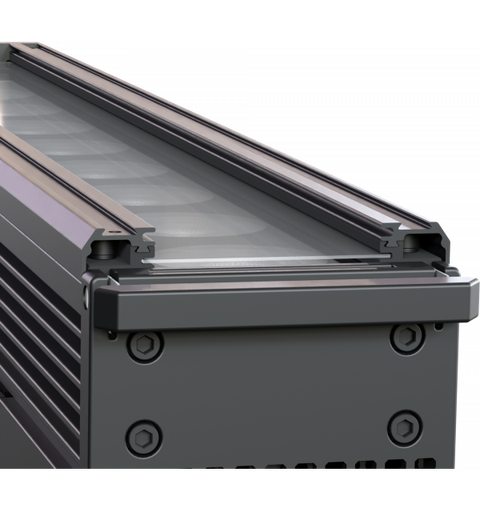

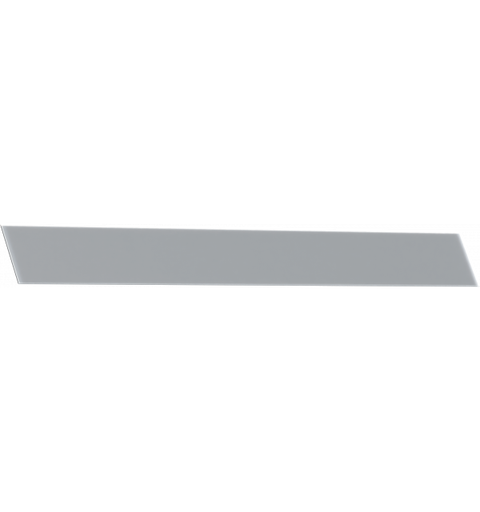

The beam angle of the LumiPix XB can easily be adjustable with holographic beam shaper filters or with the optical accessories.
These units were specifically made for live productions, and include control options like DMX/RDM, Ethernet and Wireless DMX (CRMX and W-DMX), sharing the same user settings and capabilities as the theatrical and broadcast luminaires.
Features:IP65, pixel-controlled LED linear fixture, available in 18 pixels and 9 pixels
High CRI (90+), advanced colour control and effects generator
DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
LIGHT SOURCE
- Source: 9x20W RGB + Warm White LEDs (driven @ 430W)
- Luminous flux: TBDlm
- Luminous flux: TBD
- Lux: TBDlx
- Lux: TBDlx
- CRI: TBD
- R9: TBD
- TLCI: TBD
- TM30 Rf: TBD
- TM30 Rg: TBD
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 10°
- Field angle: 18°

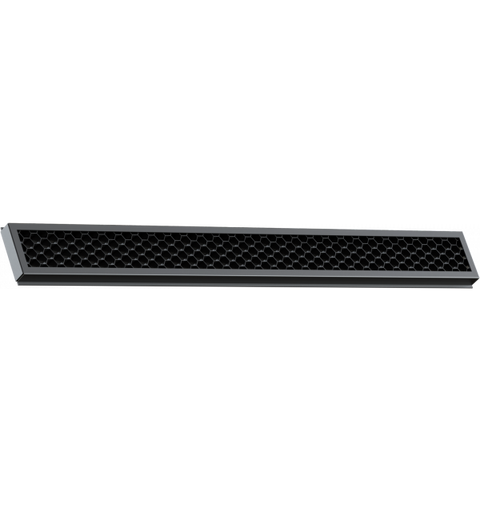

- Lens type: different optics available
- Additional optics: several filters available
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K - 10.000K with 28 K resolution
- Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
- Pixel control: 9 pixel2pixel control
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 150W
- Output (at 230V): 13
- Power factor: >0,97
PHYSICAL
- IP rating: 65 for temporary outdoor use (*)
- Cooling: active, silent operation
- Suspension and fixing: hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 515x185x150mm
- Weight: 3,8kg
(*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT- 1 x LUMIPIXXB050
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- 2 x side floor brackets
- User Manual
- 1 x OS27
