NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

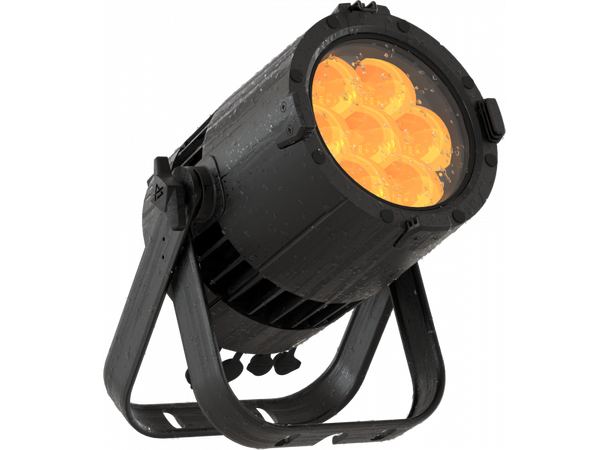

Jet Par7ZIP is a flexible IP65 rated LED zoom PAR featuring a 7x20W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.
Jet Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.
FEATURES:
- 7x20W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
- 4.5° to 53° motorized linear zoom
- IP65 for exterior applications
LIGHT SOURCE
- Source: 7x20W RGB + Warm White LED
- Luminous flux: preliminary data: (4,5°) 1'229 lm - (53°) 2'108lm @full
- Lux: preliminary data: (4,5°) 27'888 lx - (53°) 720lx @3 m full
- CRI: preliminary data: 93,8 @ 3'200K; 92,5 @ 5'600K
- R9: preliminary data: 93,4 @ 3'200K; 79 @ 5'600K
- Source life expectancy: > 50.000 h
- OPTICS
- Zoom: 4,5° - 53° motorised linear zoom
- Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K ~ 10.000K
- Colour wheel: gel filters included
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: weatherproof IP65 construction
- Body colour: black

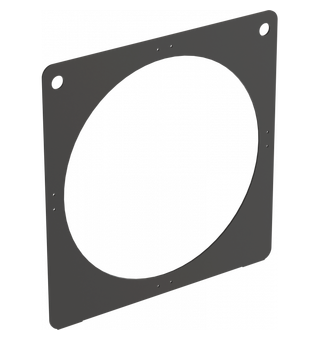

- Other: Front mount holder for accessories as Barndoor, filterframe
CONTROL
- Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
- DMX channels: 1 / 2 / 6 / 12 / 14 / 20channel

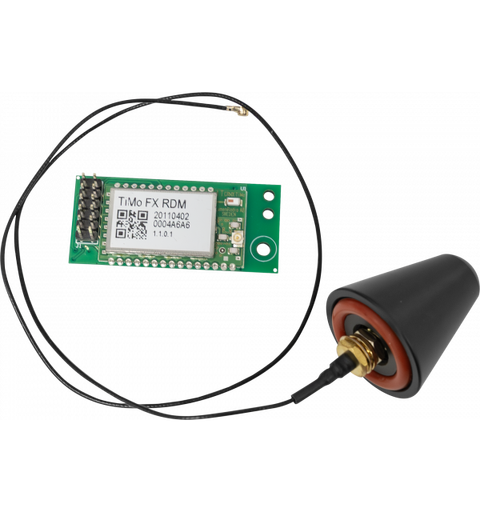

- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: LCD high resolution colour display
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 140W
- Output (at 230V): 16 units on a single power line
- Power factor: > 0,95
PHYSICAL
- IP rating: 65 for outdoor installations
- Cooling: active, silent operation
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

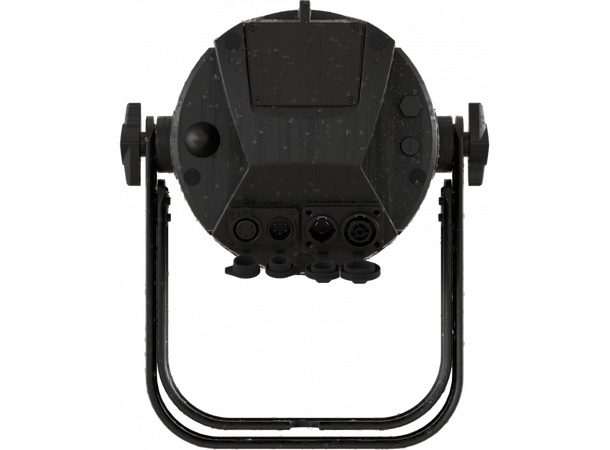

- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT

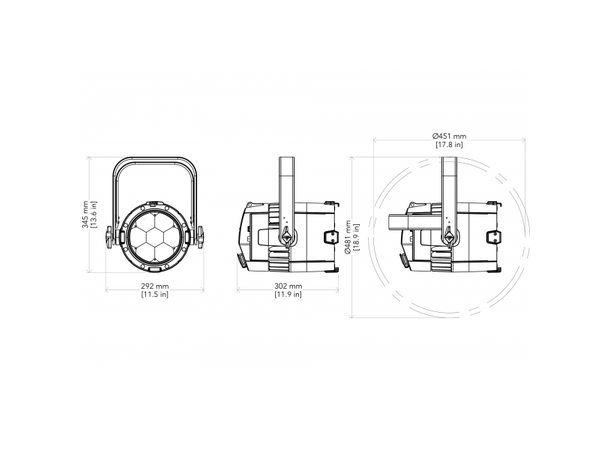

- Dimensions (WxHxD): 291x347x300mm
- Weight: 9,3kg
- (*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x JETPAR7ZIP
- 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
