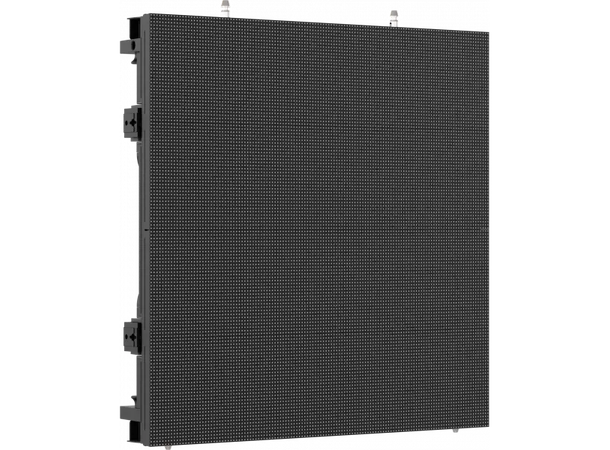

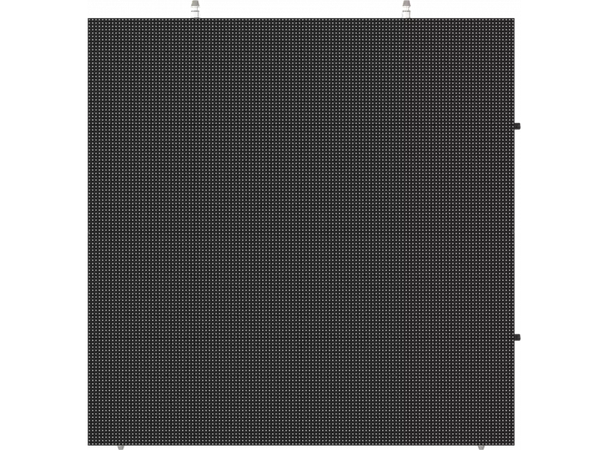

SigmaPix 39T is a rental LED screen for outdoor use with a 3,9 mm pixel pitch, designed to meet requirements for touring, events and install applications.
This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.

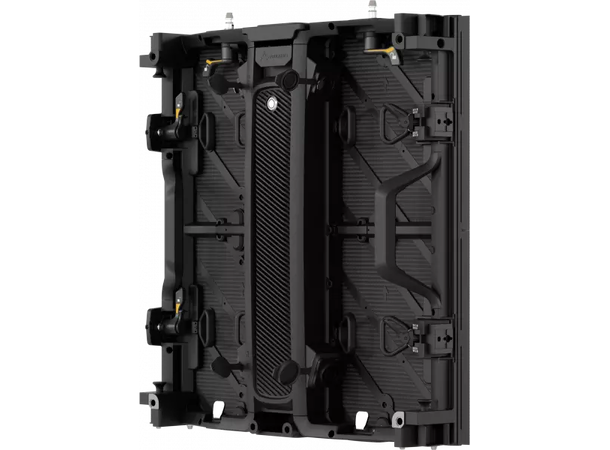

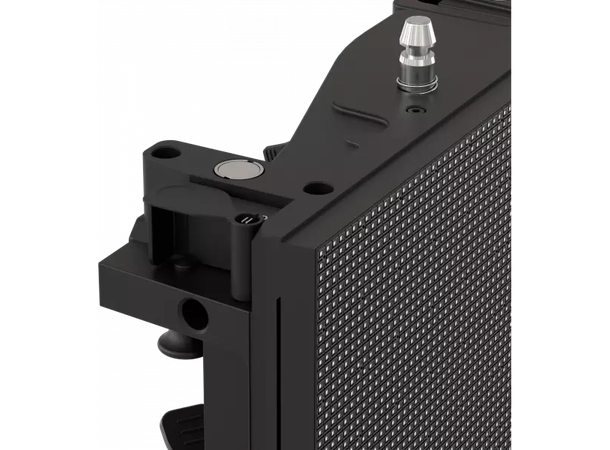

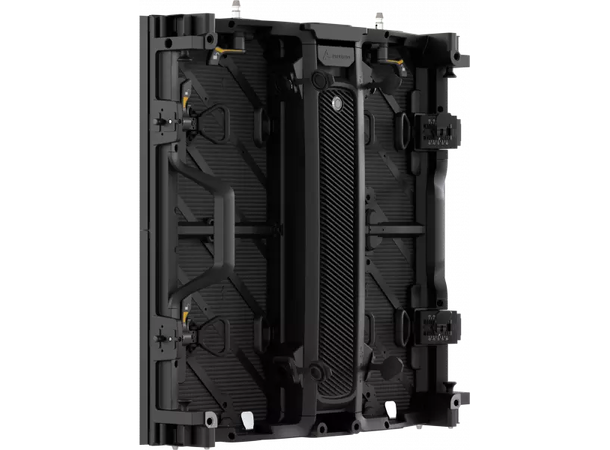

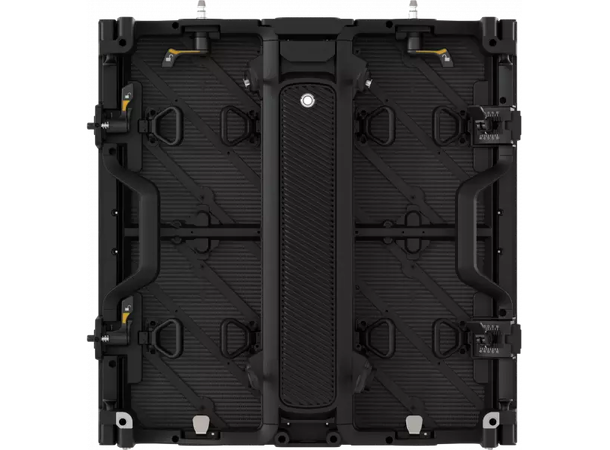

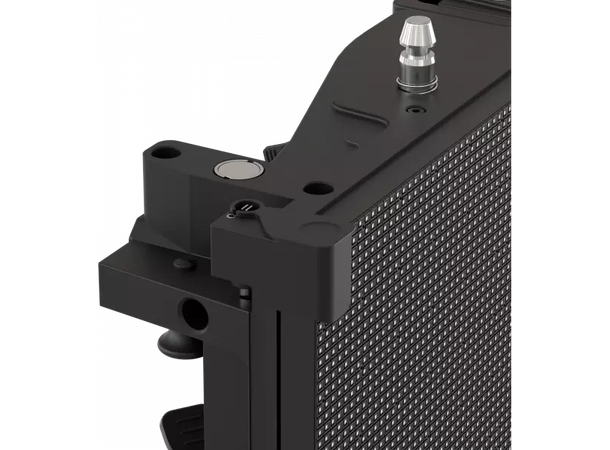

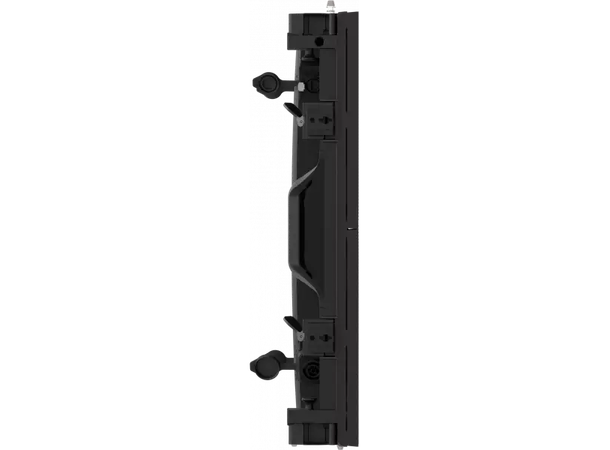

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.
Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.
SigmaPix 39T tiles have on board curve mechanics allowing both concave and convex precise installation of +10° / -10° each tile and the weight has been reduced down to 8,6 kg (50x50) / 14,6 kg (50x100) per panels (34,4 /29,2 kg per sqm)
SigmaPix 39T is truly creative and it is enriched by the special C tiles, a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.
The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.
Features:Single person installation, auto lock design, scratch protection and flip corner shield
Fast LED Module and PSU replacement
Built in curve mechanics for +10° / -10° concave & convex
Special C (90° corner) cabinet for unprecedented design
Refresh rate of 3.840 Hz
VIDEO
- Driver chip type: MBI 5253
- LED source: Nationstar SMD1921 black frame and white face
- Pixel pitch: 3,9mm
- Panel resolution: 128x128pixels
- Module resolution: 64x64pixels
- Luminous flux: 4.500nit
- Contrast: 3.000:1
- Grayscale: 14 bit
- Refresh rate =: 3.840Hz
- Drive Mode: 1/16 scan, constan current
- Vertical viewing angle: 120°
- Horizontal viewing angle: 140°
- LED density: 65.536LED/sqm
- Dead Pixel Ratio: <0.002
- LED avg life span: 100.000
ELECTRICAL
- Power input/output: IPKON Seetronic IN/OUT
- Power supply: AC 110/230 V 50/60 Hz
- Max power consumption (panel): 170W
- Avg power consumption (panel): 55W
- Max power consumption (sqm): 680W
- Avg power consumption (sqm): 220W
- Standby power consumption (pannello): 50W
- Max rated current/panel:: AC 220V / 0,77 A
- Working temperature: -20°C / +50°C
- Working humidity: 10~90 RH%
CONTROL
- Receiving card type: A8S-N
- Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
- Control protocol: Novastar
- Signal input: waterproof Seetronic RJ45
- Signal output: waterproof Seetronic RJ45
MECHANICS
- Magnetic LED modules: not available
- Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
- Module size (WxH): 250x250mm
- Panel size(WxHxD): 500×500×83mm
- Vertical hanging system: built-in aliscaf clamp support
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Connection: seamless locking system
- Curvability: convex and concave -10° / +10°
- Body: die-cast aluminium housing
- Color: black
- IP rating: IP65 (front and rear)
- Panel weight: 8,6kg
- Weight per square meter: 34,4kg
- Hanging Panel Quantity =: 20 for hanging and 12 for stacking
- Compliant Standard: CE, UKCA, cURus
ITEMS REF.
Accessory Code
Description
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}

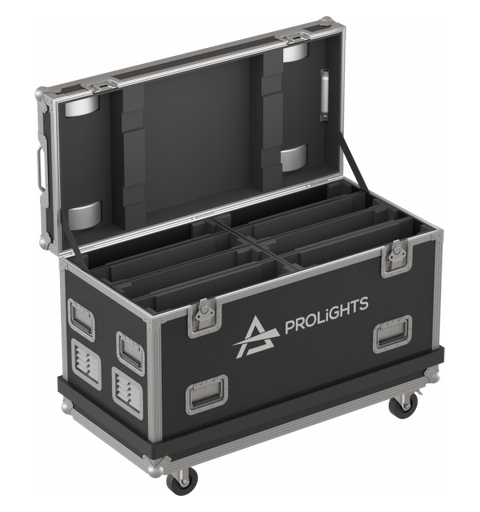

SXFCM80391X1
Flightcase 8 in1 for SIGMAX39T1X1
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
SIGMAX39TC1X1WF
Outdoor LED 45° module, SMD1921 WF, p.3,9, 50x50cm, 128x128pix, 4500 nit, 8,6kg
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXHGB01
Fly bar / ground bar for SIGMAX and KAPPAX systems, 1 column
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXHGB02
Fly bar / ground bar for SIGMAX and KAPPAX systems, 2 columns
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXHGB01C45LR
Double side 45° cut fly bar / ground bar for SIGMAXC cabinets
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXCJB
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXBS21
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXBS31
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXBSC
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
KSXGHR
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
SXXJ
Metal joint used to connect 4 pcs SIGMAX series cabinets
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXXJ
Metal joint used to connect 4 pcs OMEGAX or SIGMAX cabinets, M10 hole
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXFCIS100
Rigging/ground-stack structure flightcase OMEGAX-DELTAX LED-display, 100cm
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXFCIS200
Rigging/ground-stack structure flightcase OMEGAX-DELTAX LED-display, 200cm
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXFCSP
Spare part flightcase for OMEGAX-DELTAX series LED-display
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXACL01
Power cable for LED display series, L.140 cm
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
OXACL10
Power cable for LED display series L.10 m
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
SXDCL01
Data cable for SIGMAX LED display series assembled with RJ45, L 140 cm
SIGMAX39T1X1WF (optional)
{ProdottiDaAccessorio}
SXDCL10
Data cable for SIGMAX LED display series assembled with RJ45, L 10 m
