PROLIGHTS MOSAICOXLPLUS Goboprojektor 600W CW LED, IP66

PROLIGHTS MOSAICOXLPLUS Goboprojektor

600W CW LED, IP66

Varenr: 184793

Alt. varenr: MOSAICOXLPLUS

96 300,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

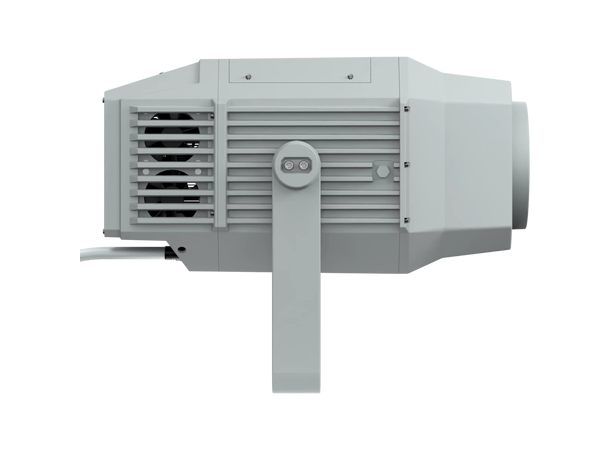

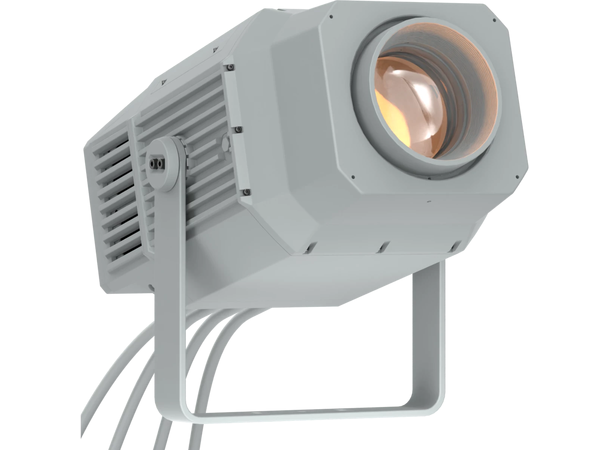

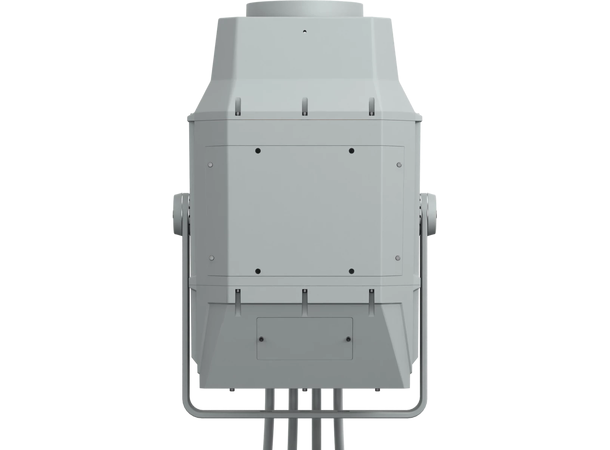

Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

Main features:

IP66 allowing long-lasting installation with minimal maintenance
Equipped with 6°- 50° linear zoom system to for both near and long throw installation
600W White LED engine with 6.300 K CT delivering 23'600 lumens output
Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

Technical specifications

LIGHT SOURCE

Source: 600W high-power white LED
CCT: 6.300
Luminous flux: (6,8°) 17'404 lm - (52,1°) 23'570 lm @Full
Lux: (6,8°) 59'962 lx - (52,1°) 1'454lx @5 m full
Source life expectancy: > 20.000 h

OPTICS

Zoom range: 6,8° - 52,1° motorised linear zoom
Lens diameter: 119mm / 4.69''
Lens type: high-quality glass lens optics
Focus: motorised

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: linear CTO correction 3.000 K ~ 6.000 K
Colour wheel: open + 6 interchangeable colour filters

DYNAMIC EFFECTS

Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size (BW): outer: 26,9 mm - image: 20,5 mm
Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
Circular prism: 4f with bi-directional rotation, indexing
Frost: dual frost filter, soft-edge and heavy
Iris: 5 ~ 100% motorised iris

BODY

Hardware on-board: ancor points on the front for accessory mounting
Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
Body colour: RAL 9006

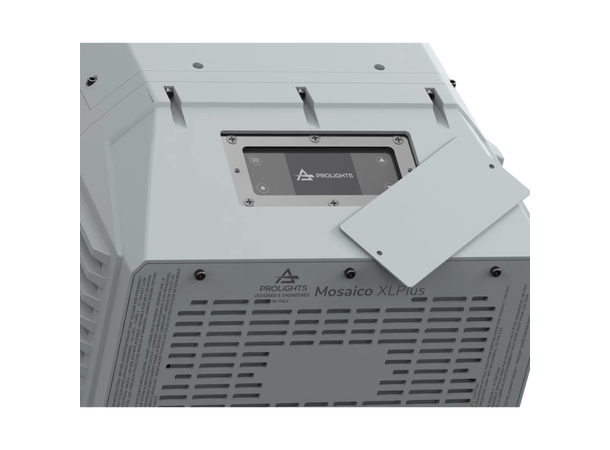

Other: inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows
throughout these scenes

CONTROL

Protocols: DMX512, RDM, CRMX
Stand Alone: Stand Alone programmer and playback
DMX channels: 28 / 30 / 35 / 44channel
Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX
(Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: black OLED touch display
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 680W
Standby power: 58,7 W
Output (at 230V): 4 units on a single power line
Power factor: >0,96

PHYSICAL

IP rating: IP66 for outdoor installations
IK rating: 09
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Adaptors: XLR and BARE END 16A adaptors included
Signal connection: 1,8 m moulded IP signal IN/OUT connectors
Power connection: 1,8 m moulded IP power IN/OUT connectors
Dimensions (WxHxD): 403x462x565mm / 15.87''x18.19''x22.24''
Weight: 35,5kg / 78.26lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM
