NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

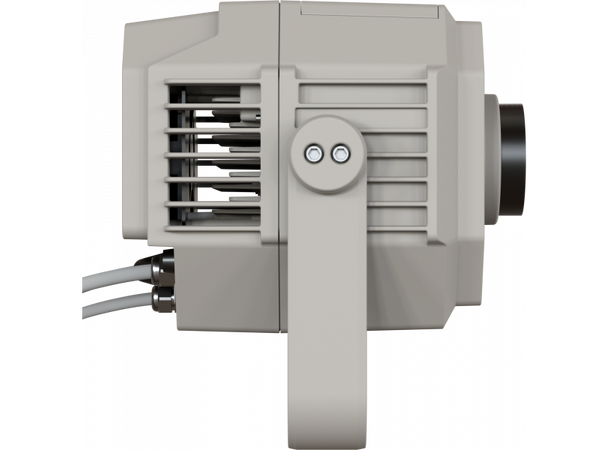

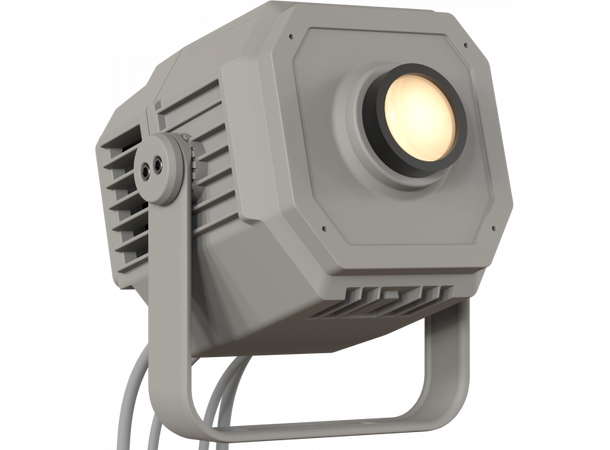

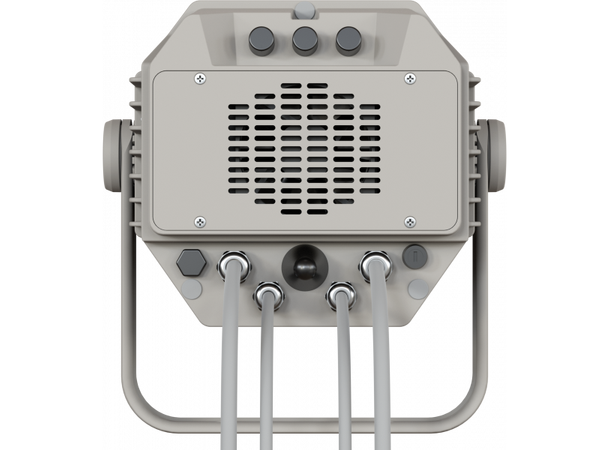

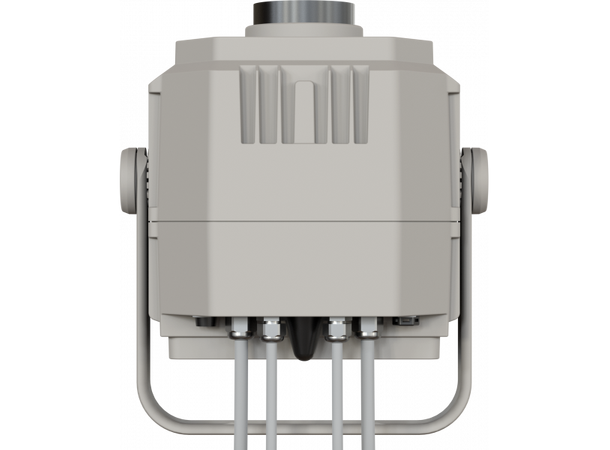

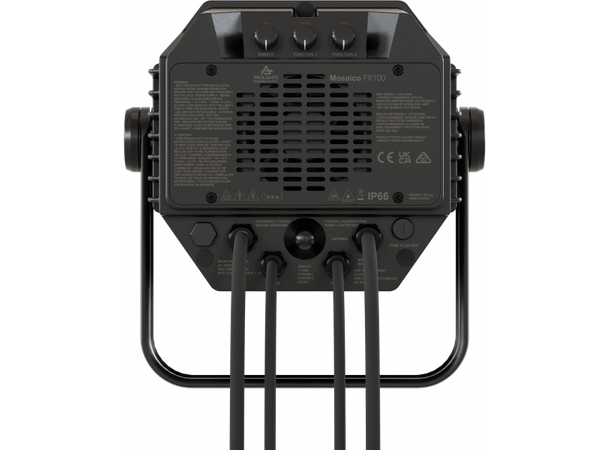

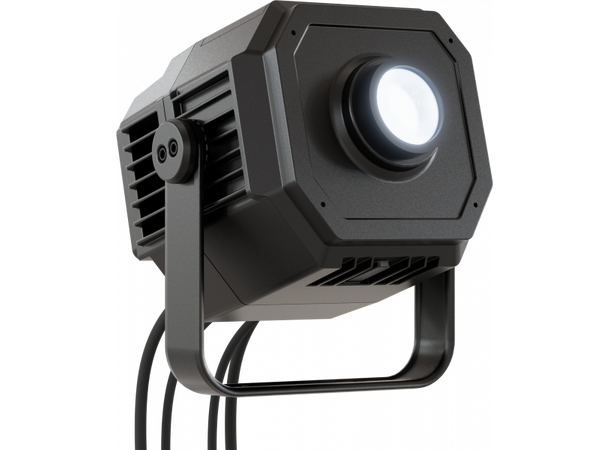

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

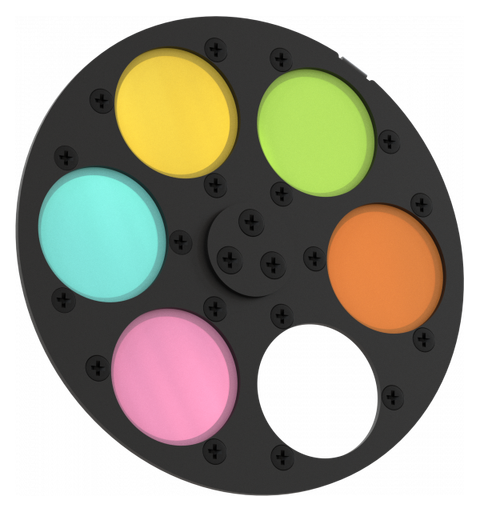

Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

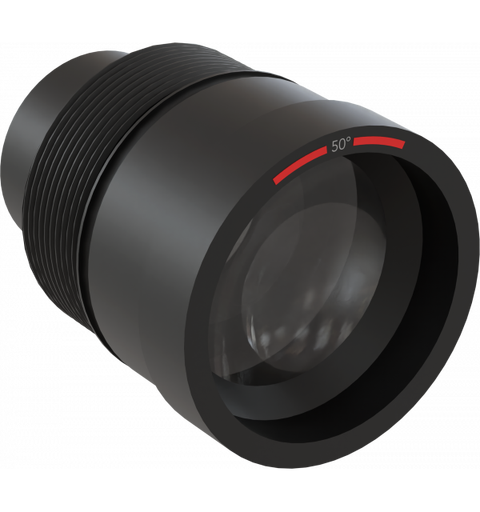

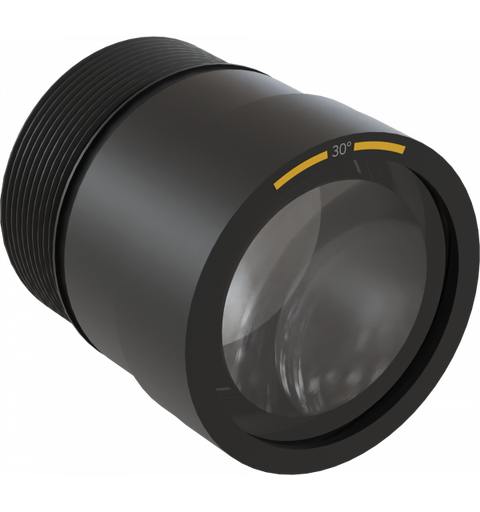

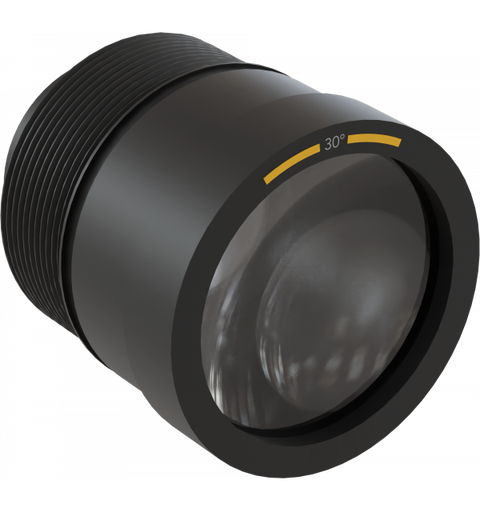

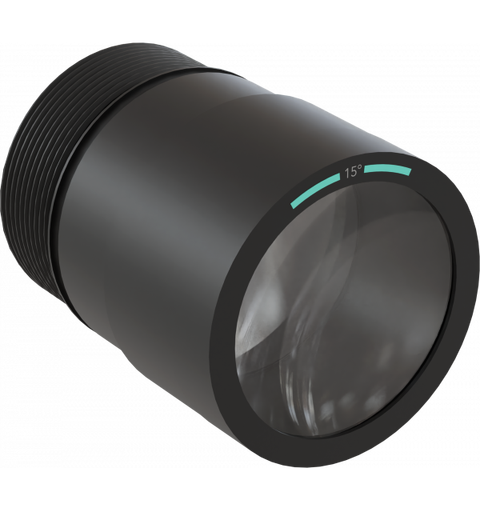

Mosaico FX100 is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.
This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.
Please note that Mosaico FX100 do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.
Features:100W White LED Source Image and Effect light projector
15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
DMX, CRMX Wireless and local stand alone control
LIGHT SOURCESource:
100
W
high-power white LED
CCT:
8'000K
Luminous flux:
(15°) 3'174 lm; (30° - WT) 3'246 lm; (30° - GB) 3'029 lm; (50° - WT) 3'646 lm; (50° GB) 2'217 lm; (70°) 2'367
lm
@full
Lux:
(15°) 1'612 lx; (30° - WT) 954 lx; (30° - GB) 114 lx; (50° - WT) 345 lx; (50° GB) 179 lx; (70°) 176
lx
@5 m full
Source life expectancy:
> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
DYNAMIC EFFECTSControl Resolution:
16-bit dimmer

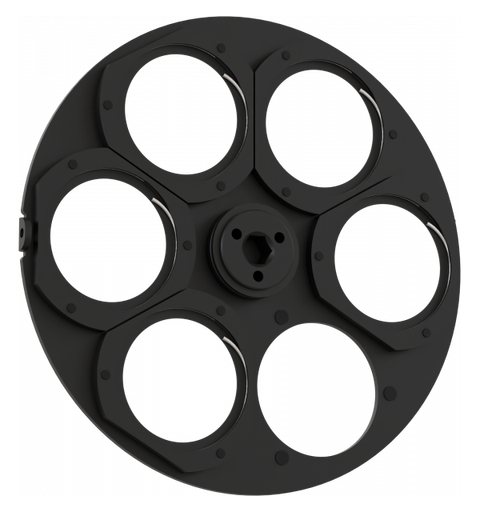

Animation wheel:
2 interchangeable wheels with indexing and CW and CCW rotation with variable speed -
see available accessories
Rotating gobos:
gobo holder with manual adjustable index position system (gobo not included) -
see available accessories
Gobo size (BW):
outer: 26,9 mm - image: 22 mm
Gobo size (Color):
outer: 26,9 mm - image: 20,5 mm
Static mode:
selection of static dimmer and effects rotation mode
CONTROLProtocols:
DMX512, RDM, CRMX + WDMX, 3 push encoder
Stand Alone:
3
push encoder
DMX channels:
8
channel
Wireless Control:
included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM:
RDM for remote monitoring and settings
Display:
user interface through DATAMASTER external coder (not included)
Firmware upgrade:
yes, via USB - DMX interface (UPBOX2) not included
Master/Slave:
for synchronised operation of more units linked in a chain
ELECTRONICSDimmer:
linear 0 ~ 100%, electronic and manual knob dimmer
Dimmer curves:
selectable dimming modes available
Strobe / shutter:
1-30
Hz, electronic
Operating temperature:
-20° C / +45° C (-4° F / +113° F)
LED Control:
flicker free frequency with adjustable PWM
Selectable PWM:
600 ~ 25.000 Hz
PHYSICALIP rating:
66
for outdoor installations
Cooling:
active, silent operation

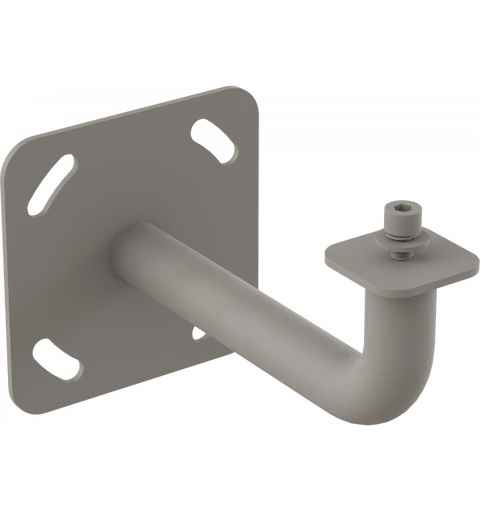

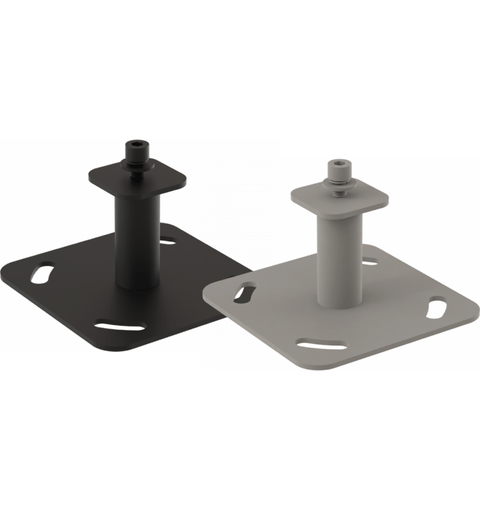

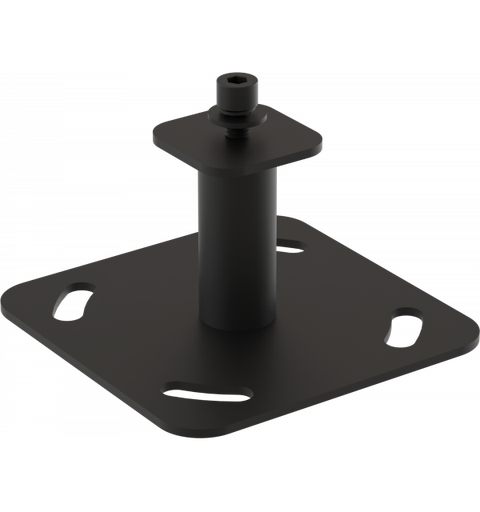

Suspension and fixing:

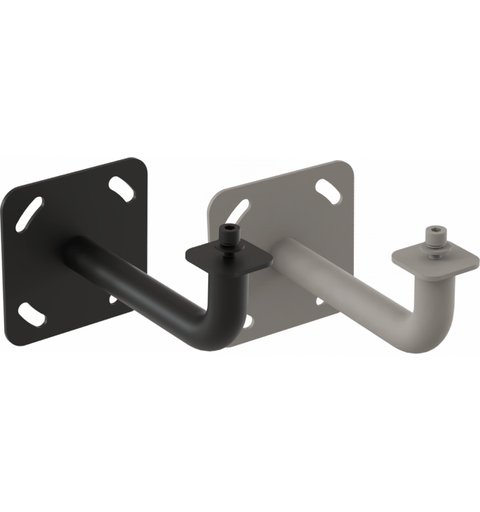

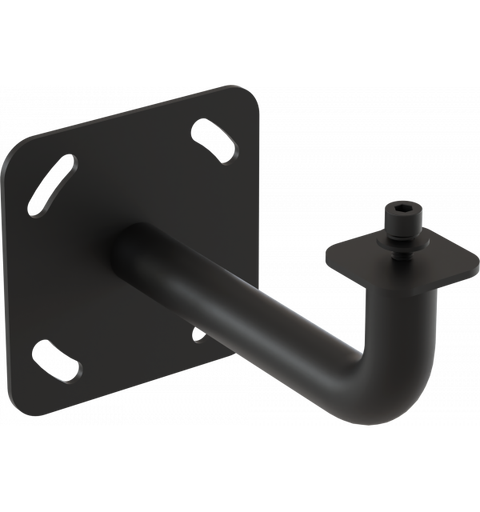

bracket for hanging and positioning
Adaptors:
XLR and BARE END 16A adaptors included
Signal connection:
35 cm
moulded IP signal IN/OUT connectors
Power connection:
35 cm
moulded IP power IN/OUT connectors

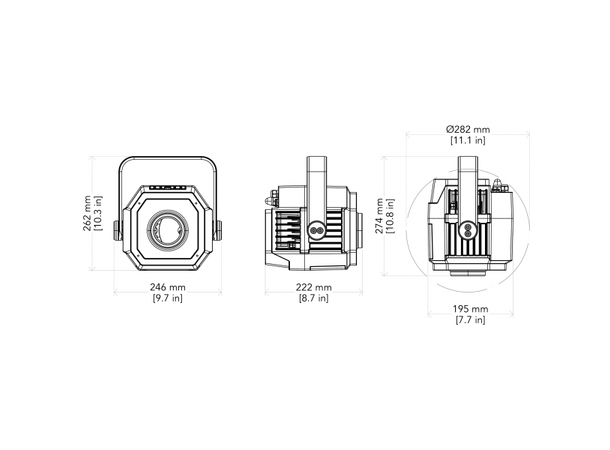

Dimensions (WxHxD):
224x261x221
mm
Weight:
5,7
kg
CERTIFICATIONS / APPROVALS BOX CONTENT- 1 x MOSAICOFX100

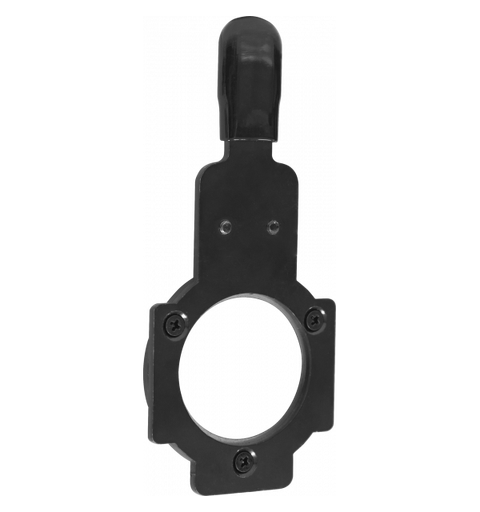

- 1 x MFX100CH

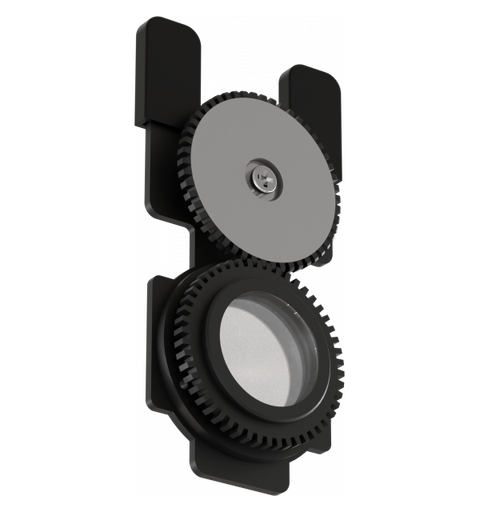

- 1 x MFX100GH
- 1 x MFX100WE1
- 1 x MFX100WE2
- 1 x BARE END - IP connection adapter
- 1 x 5p XLR - IP connection male adapter
- 1 x 5p XLR - IP connection female adapter
- User Manual
