NB! BRUKT. Full overhaling på serviceverksted.

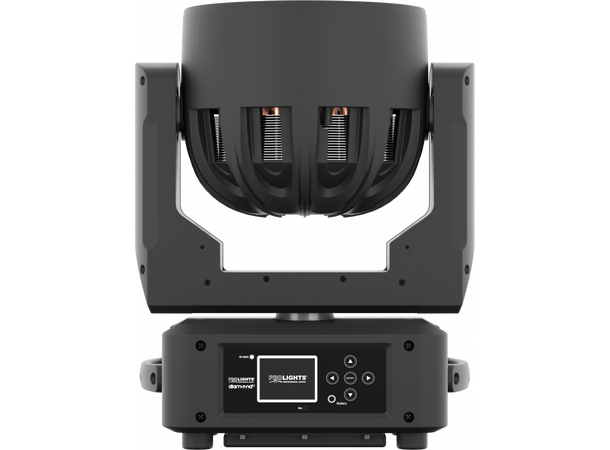

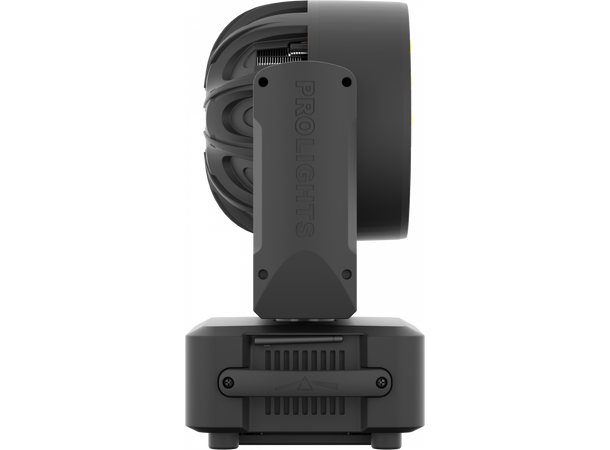

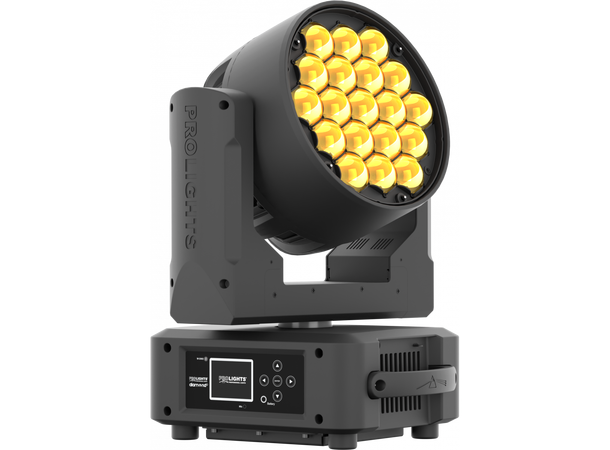

Diamond 19CC is a pure wash light version of the Diamond 19. Retaining the massive 6° - 66° zoom, even beam and truly fantastic colour range but removing the individual control of each pixel. When the budget won’t quite stretch to the fully featured Diamond 19, the show can still look stunning with the Diamond 19CC.
Features:
19x15 W RGBW FC LEDs
6° - 66° (1:11) zoom
Dual LED zone control for basic 'eye-candy' effects
CT channel with white emulation: 2800 K - 9000 K
Liquid cooling system for minimal noise
LIGHT SOURCE
Source: 19x15W RGBW LED
Luminous flux: 2'893lm
Lux: (6°) 7'670 lx - (66°) 711lx @5 m
Source life expectancy: > 50.000 h
OPTICS
Zoom: 6° - 66° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
Colour mixing: RGBW / FC
CTC: CTC control through dedicated DMX channel
White presets: 2800 K ~ 9000K
Colour wheel: virtual colour wheel with presets
DYNAMIC EFFECTS
FX generator: 2 sections ring control
BODY
Pan angle: 630°
Tilt angle: 265°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM
DMX channels: 14/15/16/26channel
Pixel control: ring control
W-DMX: optional, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 306W
Output (at 230 V): 6 units on a single power line
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: any position with quick-lock omega brackets

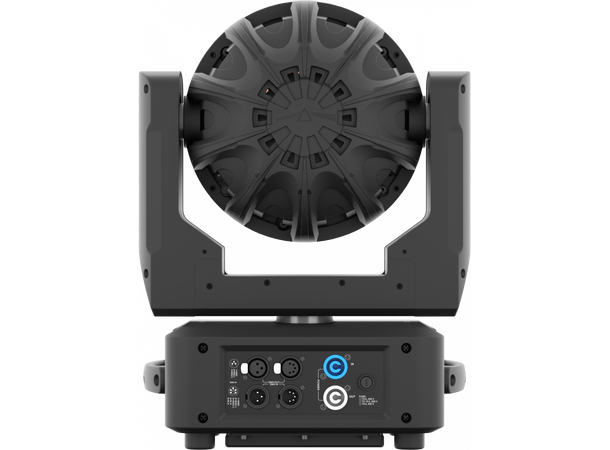

Signal connection: Amphenol XLR 3p+5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 338x449x235mm
Weight: 11kg
