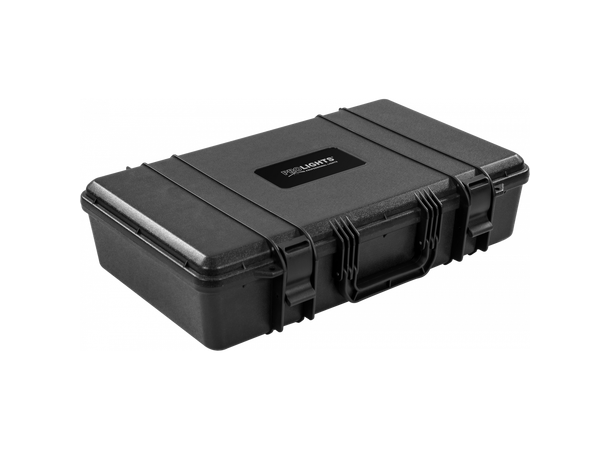

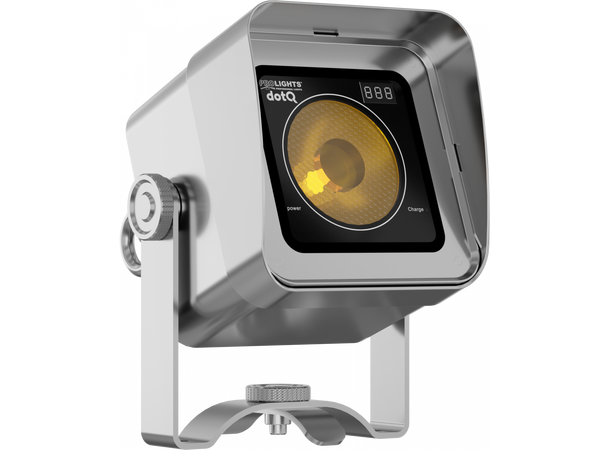

DOTQPACK is a bundle composed by 6pcs of DOTQ, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. DOTQ is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.

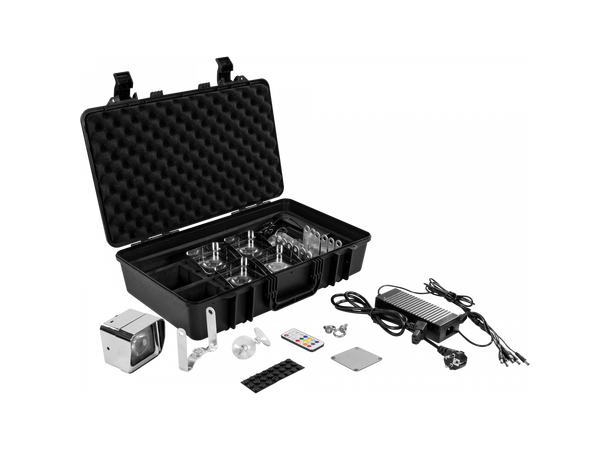

DOTQPACK include:
6 x hanging bracket

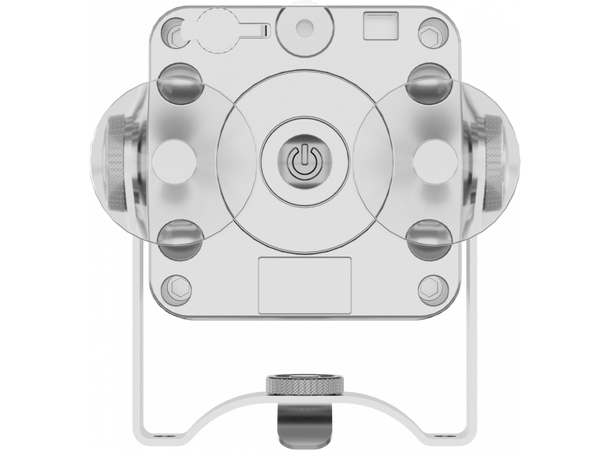

12 x air suckers

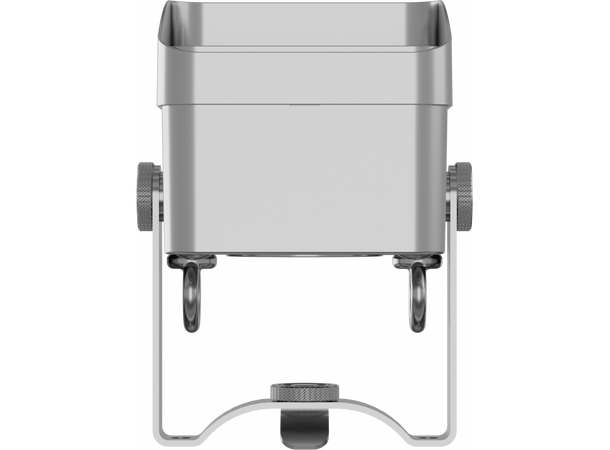

6 x eye bolt
6 x magnetic frost filter
6 x top hat
1 x IR controller
1 x battery charger for 6 DOTQ
24 pcs rubber feet
adjustable foot support
Features:
Even, powerful saturated and pastel colours from single 15 W RGBW LED.
Chrome finish, ultra-compact size and IP65 rating for incredible versatility.

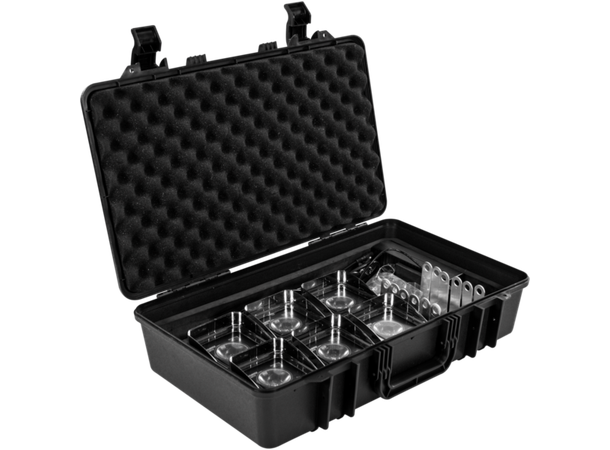

DOTQ-PACK option including ABS flight case containing 6 fixtures, charging station, top hats, magnetic frost filters, IR controller, eye bolts, suction cups, yokes.
LIGHT SOURCE
Source: 1x15W RGBW LED
Luminous flux: 550lm
Lux: 710lx @3 m full
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 15°
Field angle: 23°
Additional optics: Magnetic Frost filter included for wider diffusion
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 2.800-9.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY

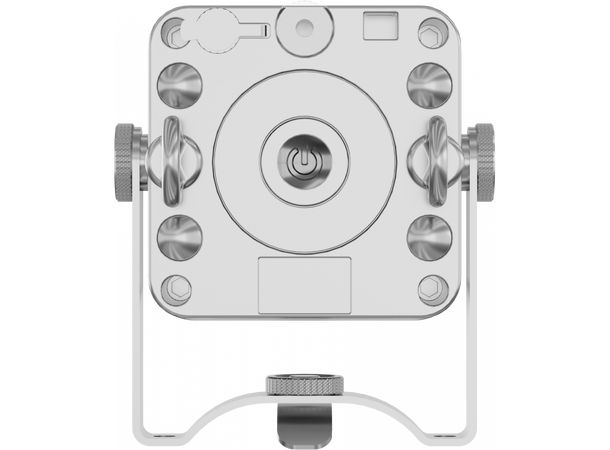

Hardware on-board: air suckers, eye bolts, top hat, rubber feets (included in DOTQPACK)

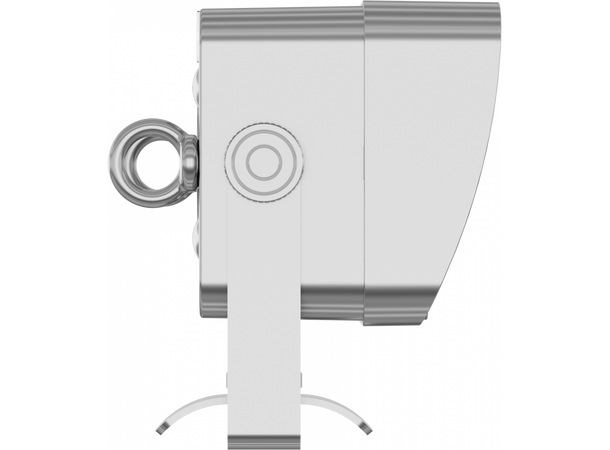

Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy policarbonate body
Body colour: mirror finishing
CONTROL
Protocols: W-DMX, RDM
DMX channels: 5 / 9channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: 3 chars display

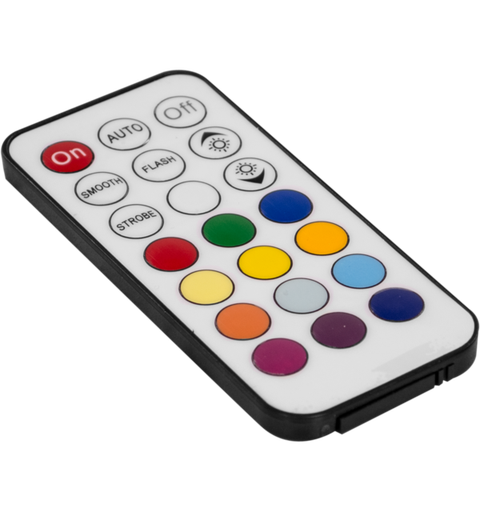

IR: infrared remote controller for simple control, addressing and settings
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1-25 Hz, electronic
Operating temperature: 0° ~ +35°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
BATTERY
Battery: 11,1V lithium
Estimated battery life in colour change mode up to: 16h
Estimated battery life in full-mode up to: 6h
Re-charge connection: power cable fast-charge in pelican case
Re-charge time: 3h/max
Battery status: LED battery status indicator
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
IP rating: IP65 (front) - IP54 (bottom)
Dimensions (WxHxD): 520x125x320mm
Weight: 6kg
