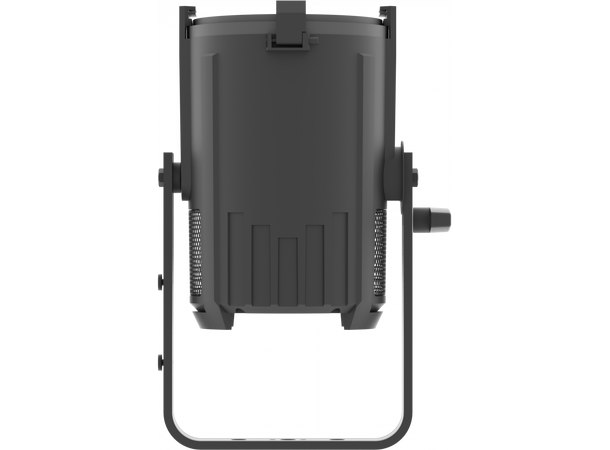

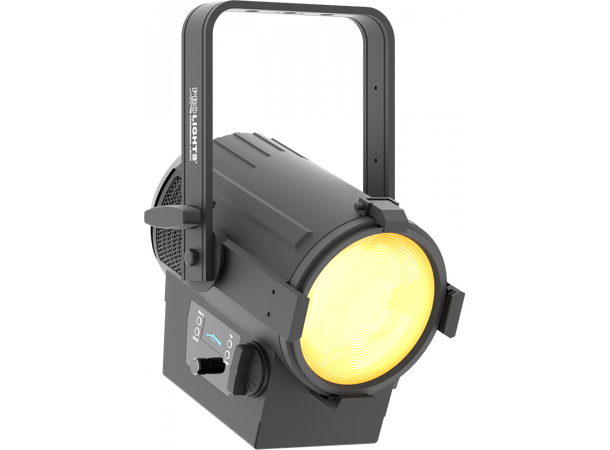

ECLIPSEFRESNELJ is a proper LED replacement for a standard tungsten 650W fresnel. Featuring the output characteristics of a traditional Fresnel, with beam control from functional barndoors, and a powerful source that focusses on outstanding color rendering the ECLIPSEFRESNELJ adds all the advantages of LED to the Fresnel.
Features:TU (3100K) and DY (5600K) versions available both with HD dimming.
Fresnel lens options with 15° to 51° zoom range
Silent operation for studio and stage use.
Compatible with standard industry external batteries (Optional)
LIGHT SOURCE- Source: (TU) 70 W (DY) 70W High Power White LED
- CT: (TU) 3100 K - (DY) 5600K

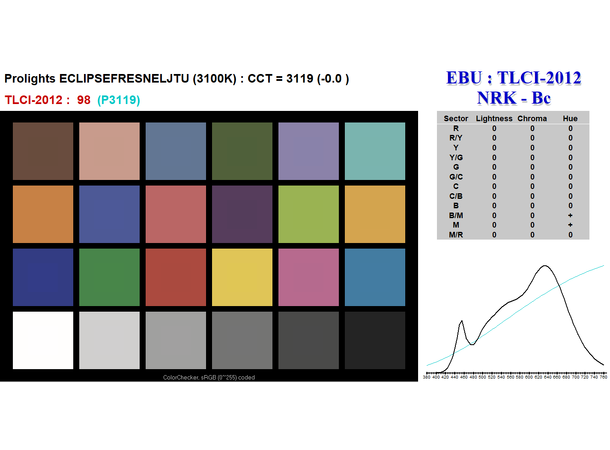

- CRI: (TU) 97 Ra - (DY) 90Ra
- R9: (TU) 97 - (DY) 54Ra
- Luminous Flux: (TU) (15°) 3451 lm (51°) 4854 lm - (DY) (15°) 3873 lm (51°) 5846lm
- Lux: TU (15°) 3513 lux - (51°) 555lux @3m
- Lux: DY (15°) 4350 lux - (51°) 735lux @3m
- Source Life Expectancy: >50.000 h
OPTICS- Zoom: 15 ° - 51° Manual
- Field Angle: 26,7 ° - 75,6°
- Lens Diameter: 6''-150mm
- Lens Type: Fresnel Lens
DYNAMIC EFFECTS- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjust of dimmer throught menu and knob
- Auto Mode: Built-in programs with execution speed adjustment
BODY- Hardware On-board: Filter frame + 8 doors barndoor included + omega bracket spigot
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL- Protocols: DMX512, RDM, Local Knob
- DMX Channels: 1 / 2 / 3 / 5 chch
- RDM: RDM ready for fixture remote monitor and settings

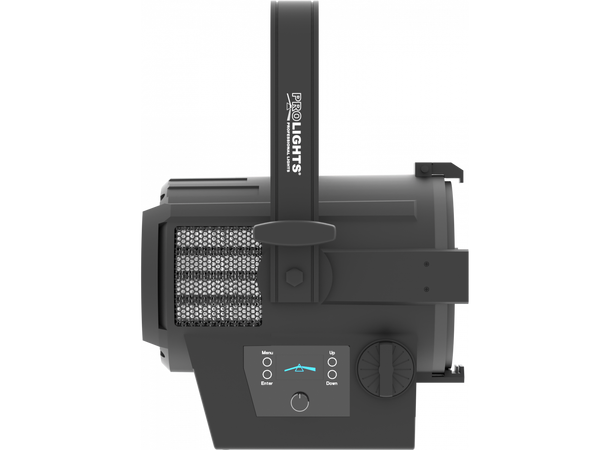

- Display: Black OLED high resolution display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Other: 16bit Control of Dimmer and Color
ELECTRONICS- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 0~30 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free frequency with adjustable PWM
- Selectable PWM: 600~25K Hz
ELECTRICAL- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 82,7W
- Power Consumption (at 120V): 83,3W
- Output (at 230V): 30 units on a single power line
- Output (at 120V): 16 units on a single power line
BATTERY- Battery: 24-34V 4400 mAh (Optional) external battery
PHYSICAL- Cooling: Forced air with low noise fan
- Suspension And Fixing: Hanging bracket suitable for safe hanging and positioning

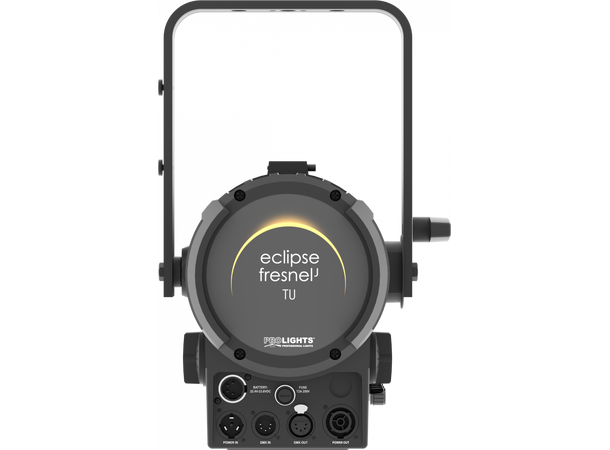

- Signal Connection: 5p in/out
- Power Connection: PowerCON TRUE1 in/out
- IP: 30
- Dimensions (WxHxD): 260,4x238,2x459mm
- Weight: 6,03kg
