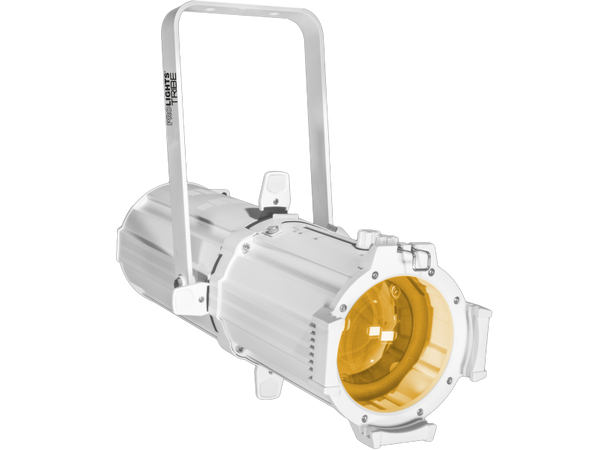

ECLIPSEJR is the new affordable LED profiler by Prolights, featurig a new level of performance in the field of ellipsoidal with LED technology\u00a0with an high flux 100W COB LED and an uniform projection.
Design of ECLIPSE makes it a flexible fixture to project from any distance thank to the manual zoom.
Features:Color temperature: Tungsten 3000K, Daylight 5000K
High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
25°-50° manual zoom
Includes gobos holder and gel frame holder
LIGHT SOURCE
- Source: 1x100W High Power White LED
- CT: TU 3000 K - DY 5000K
- Luminous Flux: TU 3545 lm - DY 3757lm
- Lux: (25°) TU 3046 lux - DY 3243lux @3m
- Lux: (50°) TU 1186 lux - DY 1262lux @3m
- Source Life Expectancy: >50.000 h
OPTICS
- Zoom: 25°~50° Manual
- Beam Angle: 25°~50°
- Lens Type: HQ glass lens optics
DYNAMIC EFFECTS
- Gobo Size: M: \u00d8 66mm, img \u00d8 48 mm, 2 mm
- Manual Color Mode: Manual adjustment of dimmer and strobe
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black, White finishing available
CONTROL
- Protocols: DMX512
- DMX Channels: 1/3ch

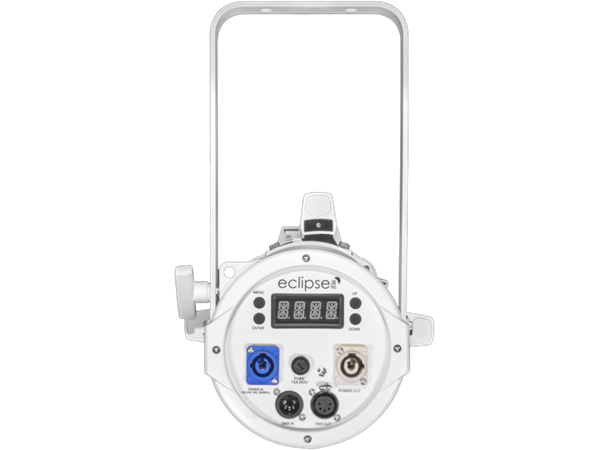

- Display: LED display user interface
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1~28 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 105.5W
- Power Consumption (at 120V): 105.2W
- Output (at 230V): 35 units on a single power line
- Output (at 120V): 19 units on a single power line
PHYSICAL
- Signal Connection: Variants available
- Power Connection: Variants available
- IP: 20
- Cooling: Forced air with low noise fan
- Suspension And Fixing: Hanging bracket suitable for safe hanging and positioning
- Dimensions (WxHxD): 259x430x529mm
- Weight: 5,76kg
Accessories (INCLUDED)
ECLIPSEJRGH LED Profiler 100W, 25-50° optics, 4 blades, IP20, 105W, 5,8kg
ECLIPSEJRTPG LED Profiler 100W, 25-50° optics, 4 blades, IP20, 105W, 5,8kg
