NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

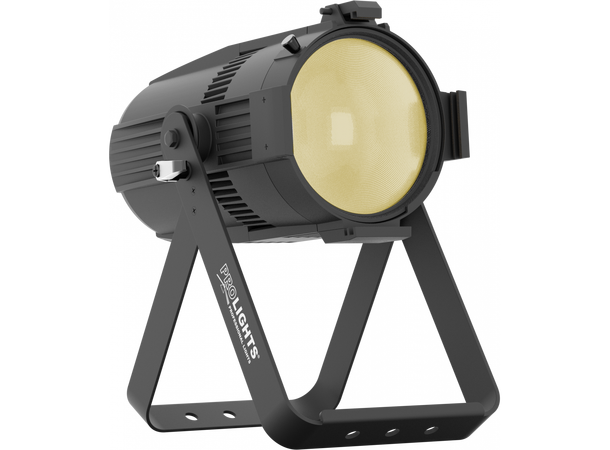

ECLIPSEPAR is a range of multipurpose LED fixtures with a single
source, delivering silent operation, high quality of light and optical
flexibility, designed to redefine the standard for theatrical, TV and
corporate applications.
ECLIPSEPARTU and DY features a 177W white LED source (3200K
TU; 6000K DY) delivering a tremendous lumen output and superior
light quality with CRI and R9 > of 95.
ECLIPSEPARUV is a real UV LED luminaire with a 365nm wavelength
LED source.
The fixture offers an extensive accessory range including barn
doors, filter frame, egg crate and a multitude of interchangeable
lenses.
ECLIPSEPAR features a smooth 16bit dimming as well as RDM control
and adjustable PWM to look good in front of a camera.
FEATURES
• 177W White LED source (3200K TU; 6000K DY) with CRI and R9
> of 95; UV 108W 365nm wavelength LED source
• Flex lens system: TU and DY - 24° onboard, 12° and 65° included,
40° optional; UV 40° onboard
• Silent operation and adjustable PWM
TECHNICAL SPECIFICATIONS
LIGHT SOURCE
• Source: 177 W white LED / 108W UV LED
• CT: (TU) 3200K - (DY) 6000K
• CRI: > 96 for TU and DY versions
• R9: > 95 for TU and DY versions
• Luminous flux: (TU) 12°: 13526 lm - 24°: 13638 lm - 65°: 12376
lm; (DY) 12°: 13571 lm - 24°: 13453 lm - 65°: 12247 lm; (UV)
229.07lm
• Lux: (TU) 12°: 15200 lux - 24°: 6560 lux - 65°: 1220 lux; (DY) 12°:
16500 lux - 24°: 6860 lux - 65°: 1230 lux; (UV) 15.9lux @3m
• Other: >85 TLCI, 90/99 TM30 for TU and DY; 365nm for UV LED
OPTICS
• Beam angle: 12° / 24° / 65° with different lens included°
• Lens diameter: 163mm
• Lens type: fresnel lens

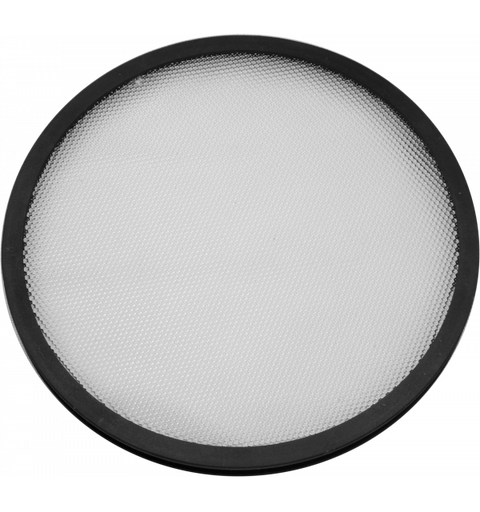

• Additional optics: 24° (onboard - for TU and DY versions), 12°
and 65° lens included (for TU and DY versions), 40° lens optional
(for TU and DY versions) - gel frame holder included (for TU and

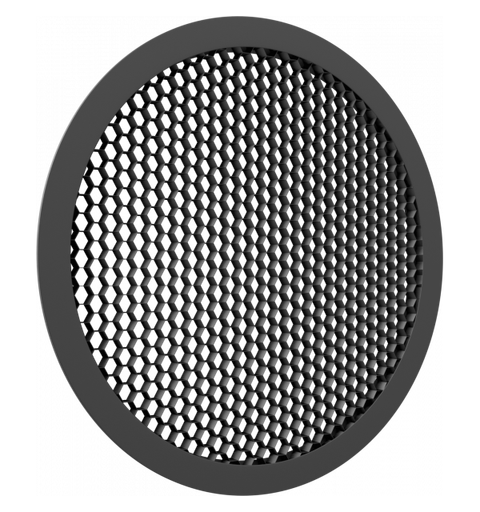

DY versions), egg crate optional
• Other: 40° lens only included on board in UV version; no other
lens or accessories availables for UV version
CONTROL
• Protocols: DMX512, RDM
• DMX channels: 1 / 2 / 3 / 6channel
ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: different dimming curves available
• Strobe / shutter: 1 - 30 Hz, electronic
• Selectable PWM: 600~25K Hz
ELECTRICAL
• Power consumption (at 230V): (TU, DY) 207 W - (UV) 127W
• Output (at 230V): (TU, DY) 12 - (UV) 16 pcs units on a single
power line
PHYSICAL

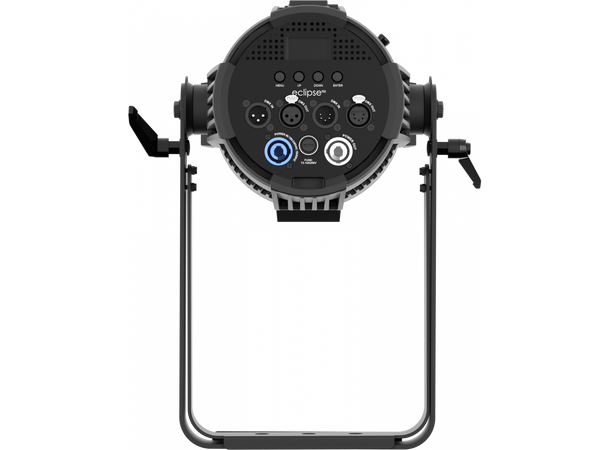

• Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 316x318x404mm
• Weight: 5.5kg
