NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER
ECLIPSEJRG2 is a new affordable LED profile, featuring a new level of performance in the field of ellipsoidal with LED technology with a high flux 100W COB LED and a uniform projection. The design of the ECLIPSE makes it a flexible fixture to project from any distance thanks to the manual zoom.
Features:
Colour temperature: tungsten 3000 K, daylight 5000 K
High-efficiency optics maximising uniformity of projection, framing precision and colour temperature stability over the entire dimming curve
25° - 50° manual zoom
Includes gobos holder and gel frame holder
LIGHT SOURCE
Source: 100W high-power white LED
CCT: (TU) 3.100 K - (DY) 5.000K
CRI: (TU) 83 - (DY) 81
Luminous flux: (TU) 3'851 lm - (DY) 3'757lm
Lux: (25°) TU 3'990 lx - DY 3'243lx @3 m
Lux: (50°) TU 1'340 lx - DY 1'262lx @3 m
Source life expectancy: > 50.000 h
Other: TM30-15RF/RG: (TU) 83 / 96 - (DY) 80 / 97 - TLCI: (TU) 71 - (DY) 66
OPTICS
Zoom: 25° - 50° manual zoom lens
Lens type: high-quality glass lens optics
Other: 25° - 50° zoom lens included
DYNAMIC EFFECTS
Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
Manual colour mode: manual adjustment of dimmer and strobe
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black, white finishing available
CONTROL
Protocols: DMX512
DMX channels: 1 / 3channel

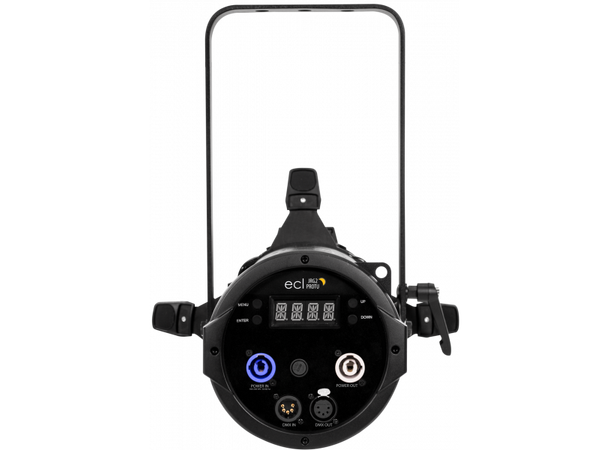

Display: LED display user interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 ~ 30 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 105,5W
Power consumption (at 120 V): 105,2W
Output (at 230 V): 35 units on a single power line
Output (at 120 V): 19 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Signal connection: DMX 5p IN/OUT
Power connection: Seetronic powerCON IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 259x430x529mm
Weight: 5,76kg
