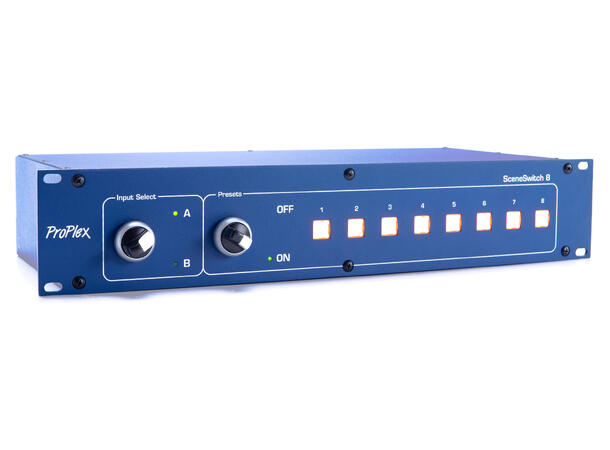

The ProPlex SceneSwitch 8 is an 8-channel DMX A/B switcher with built-in 8-scene playback.  Perform rapid switching between two DMX sources, e.g. two lighting consoles or between the main console and a backup.  Scene playback captures data on all eight DMX lines and, if a console fails, allows instant recall of eight pre-recorded scenes.  DMX source and backup functions are selected with a rugged toggle switch to avoid accidental switching.

• Part Number PP8TKAB1685RR
• DMX Inputs 2 x 8
• DMX Outputs 2
• Memory Locations 8

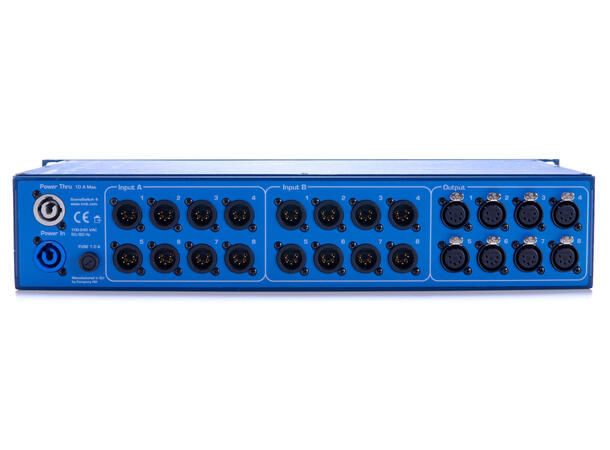

• DMX Connectors Neutrik™ XLR 5-pin
• Power Connectors Neutrik PowerCon™ In and Thru
• AC Power 100-240 VAC, 50/60 Hz
• Operating Temperature -20 to +40 °C
• EIA Rack units 19” 2U
• Unit Dimensions (WxHxD): 19 x 3.5 x 8 in (483 x 90 x 205 mm)
• Unit Weight 6.8 lb (3.1 Kg)
