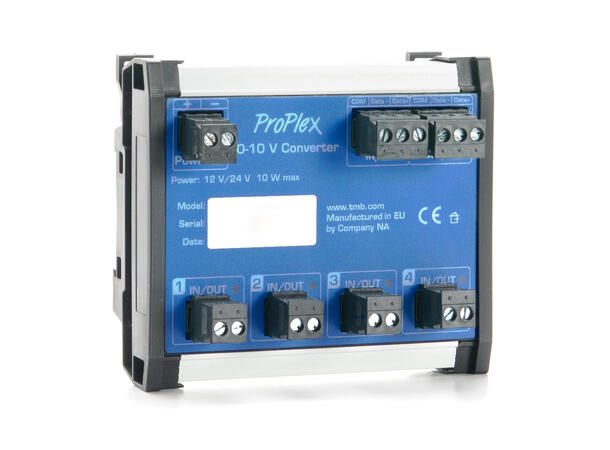

The Leader in Touring Technology, Now Coming to a Building Near You!

• Bidirectional! Converts 0-10V to DMX or DMX to 0-10V
• Four operational modes: “Theatre” Out, “Ballast” Out, “Theatre In”, “Ballast In”
• 4x 0-10V inputs or outputs
• Assign DMX channels, link with analog ports, select analog modes, via RDM
• Compatible with ANSI E1.3 (Theatre mode / 0-10V) and IEC Standard
• 60929 Annex E (Ballast mode / sink mode / 1-10V)
• Pluggable Terminal Block (PTB) screw terminals for bare-wire, installation flexibility
• Complete range of DIN Rail Devices and Drives to make a complete system!
• Operational modes:
• Output Theatre (source 0-10V)
• Output Ballast (sink)
• Input Theatre (hi-Z input)
• Input Ballast (source current 1 mA/10V)
• Input/output LEDs indicate signal level or fault conditions:
• Green – DMX signal level to 0-10V
• Blue – 0-10V signal level to DMX
• Red – output overload
• Magenta – warning for output sink load not connected (ballast mode)
