RC4 WIRELESS LUMENDIMIO Tranciever

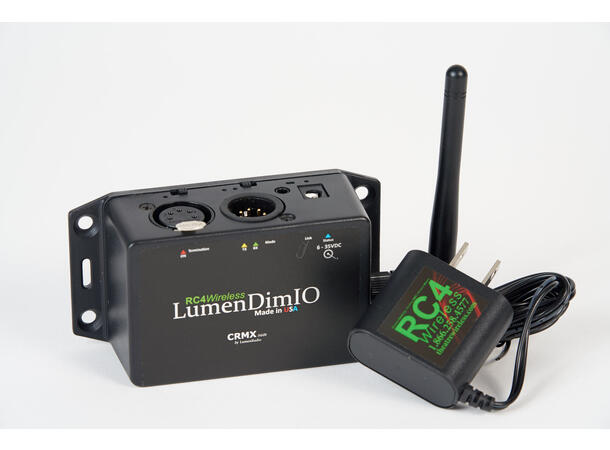

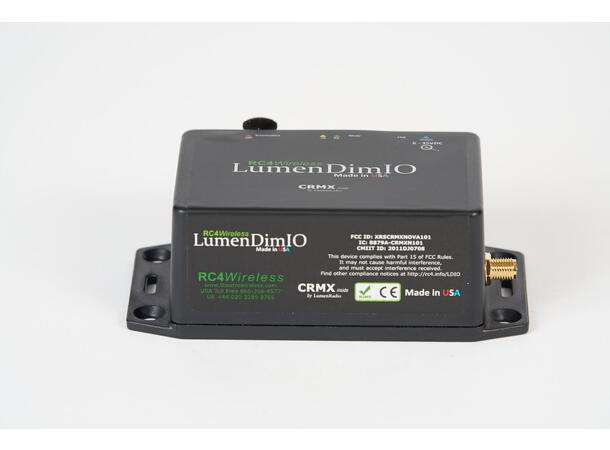

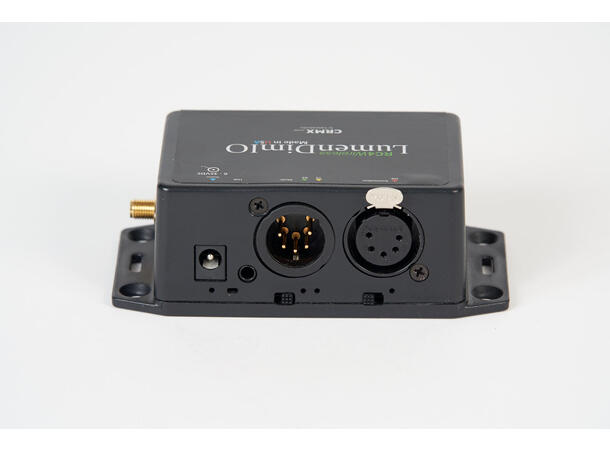

The compact RC4 Wireless LumenDimIO transceiver is both a transmitter and receiver that operates on the CRMX Lumen Radio platform that features the legendary RC4 ease of use and reliability. The LumenDimIO is easy to integrate with all of your current LumenRadio devices, and does so at an affordable price.

Transmitter Mode

• DMX Input: meets USITT DMX512/1990(4us) with 1-second data hold after dropout
• DMX Output: straight-thru hardware connection from DMX input to output
• Optional DMX channel limiting: set lowest and highest channel using RC4 OneTouch (default is full 512-channel universe)

Receiver Mode

• Any number of LumenDimIO receivers may be used in a system
• DMX Output: meets USITT DMX512/1990
• The DMX specification allows up to 32 devices on a DMX output.  The DMXio data output exceeds this requirement and is capable of driving additional devices
• Internally protected against static discharge and excessive line loading

RC4 LumenDimIO DMX Protocol Compliance

• DMX inputs and outputs comply with USITT DMX512/1990(4us)
• LumenDimIO receiver output replicates LumenDimIO transmitter input, providing the same number of DMX channels and the same number of packets per second (pps)
• Minimum number of DMX channels per packet: 1
• Maximum number of DMX channels per packet: 512
• Maximum packet-per-second rate: 44pps with 512 channels, 10000pps with 1 channel
