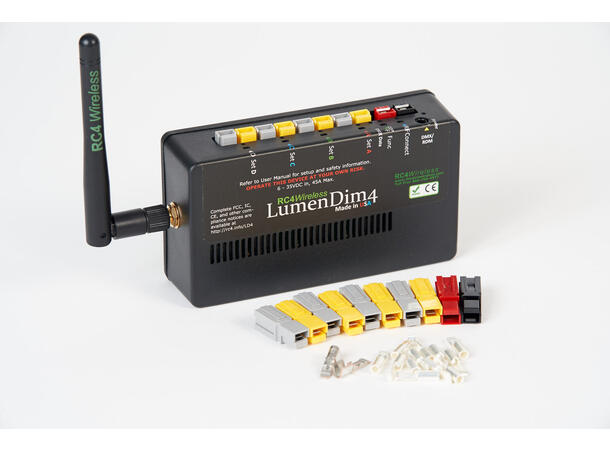

The RC4 Series 3 LumenDim4 is a battery-powered 4-channel wireless DMX dimmer on the CRMX platform for use with LEDs, lamps, costumes, props, motors and more. It combines the best RC4 Harmonized Design features with a built-in genuine LumenRadio CRMX radio transceiver. The result is an easy to use, reliable, feature-filled DMX dimmer that gives users an outstanding wireless RDM (remote device management) experience that includes multiple dimmer curves and PWM frequencies. Barely larger than a matchbox, the LumenDim4 give users super-smooth LED dimming, high-power halogen dimming and hobby servo-motor control.
- RC4 OneTouch configuration
- RC4 Digital Persistence
- DMX data in and out
- RC4 HotPatch
- High efficiency 6V- 35VDC voltage input range
- Wired and wireless RDM configuration
- 16-bit dimming with multiple PWM frequencies
Spesifications
- Dimensions: 4.40" x 2.44" x 1.22" (112mm x 62mm x 31mm)
- Weight: 4.80oz

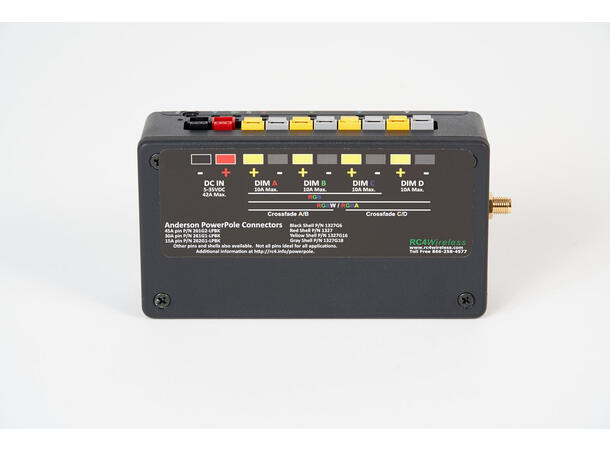

- Power Input: 6VDC – 35VDC, 0.5W, Anderson Powerpole connectors
- Dimmer Outputs: 4 low-voltage DC dimmers, Anderson Powerpole connectors, 19-bit resolution PWM (524,000 steps)
- Output Power, per Dimmer: 15A non-continuous, 10A continuous
- Maximum Total Power Handling: 42A (limited by safety rating of Anderson connectors)
- Multiple PWM frequencies: 77Hz (high power), 615Hz (flicker free), 5kHz (artifact free for video), 20kHz (noise free for audio), 40kHz (super-slow-motion video)
- Multiple Dimmer Curves: Non-Dim, Non-Dim Inverted, Linear, Linear Inverted, Inverse-Square-Law (ISL), ISL inverted, servo motor pulse clockwise (CW), servo motor pulse counter-clockwise (CCW), AC wave (ring telephone bells)

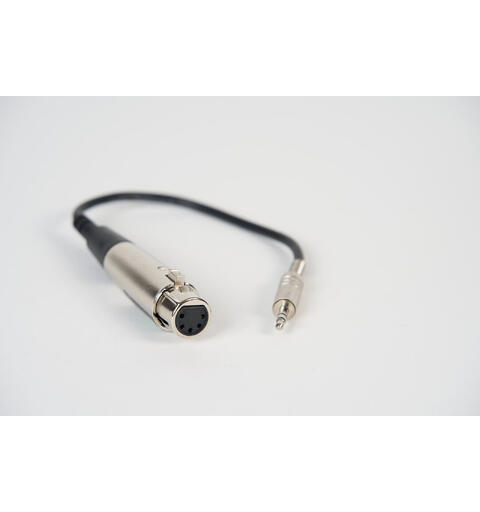

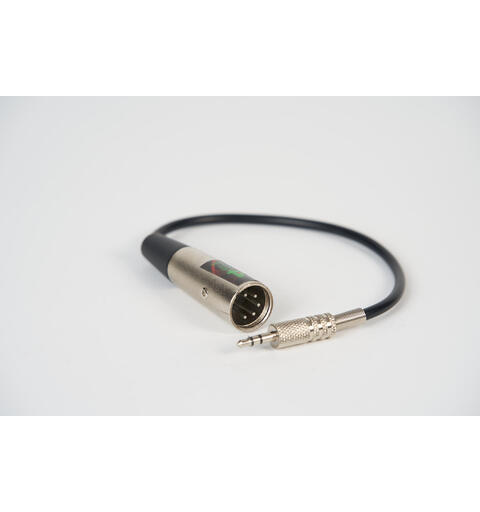

- DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port, connector adaptors available. RDM E1.20 and E1.37 (dimmer configuration) support
- Wireless DMX Protocol: LumenRadio CRMX

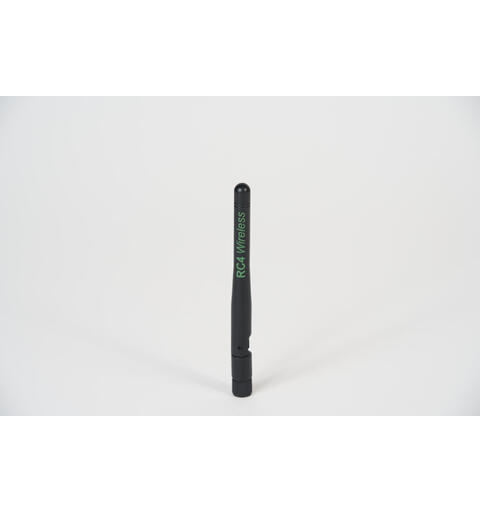

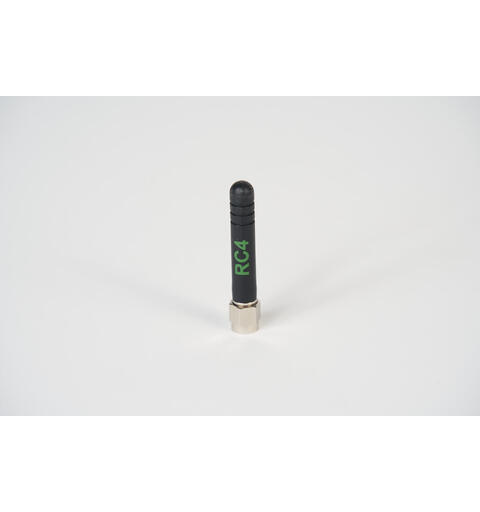

- RF Antenna: RP-SMA external, omnidirectional. Alternate antennas can be used for increased sensitivity
