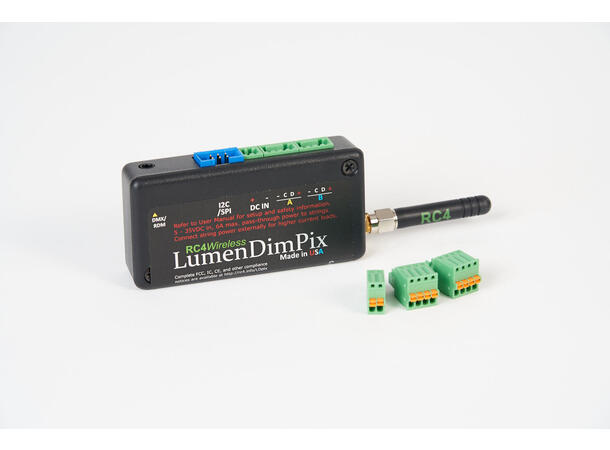

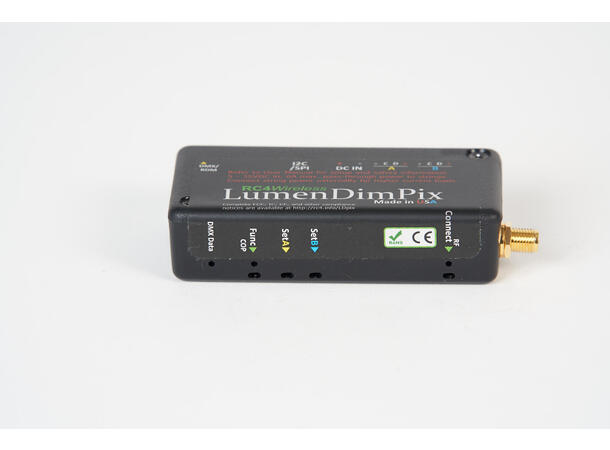

RC4 WIRELESS LUMENDIMPIX Dual Pixel

The RC4 LumenDimPIx is a tiny wireless DMX driver for pixel LEDs on the CRMX platform that enables designers to create beautiful effects quickly and easily while using fewer DMX channels. The LumenDimPix can control two separate strings up to 500 pixels long — the equivalent of 3000 DMX channels — using 3 to 510 channels within a single DMX universe. This is done using RC4’s patented RC4 Custom Pixel Profiles™. Designers can create unique and entirely original eye-catching effects and visuals without the use of complex multi-universe consoles, media servers, and all the wiring that goes with them. Using RC4 OneTouch™, RC4 Commander software, or wired RDM, users specify the string type, the DMX start channel, and various configuration parameters for each driver.

Spesifications

• Dimensions: 2.4” x 1.4” x 0.8” (60mm x 35mm x 20mm)
• Weight: 1.95oz
• Power Input: 6VDC – 35VDC, 0.4W idle, Phoenix 1881448 (mates with Phoenix 1881325)
• Pixel String Ports: 2 x Phoenix 1881464 (mates with Phoenix 1881341)
• I2C Data Port: 6-position (2×3) DIL header (2.54mm pin-spacing)
• Series 3 Versatility: DMX pixel dimming, RC4 ColorMatch™, RC4 Custom Pixel Profiles™, wired DMX in/out, wired RDM input
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port
• Pixel String Compatibility: WS2811, WS2812, APA104(RGB, RGBW), APA102, SK6812RGBW, WS2801, LPD8806,MY9231 (with optional clock adaptor), DMX. RC4 Codeloader firmware updatable to add new string types.
• I2C Protocol: Communicates with host device as an I2C slave emulating 512-position read-only-memory. The first 512 memory locations contain current DMX universe channel levels.
• Sensors: Input voltage, current draw
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port

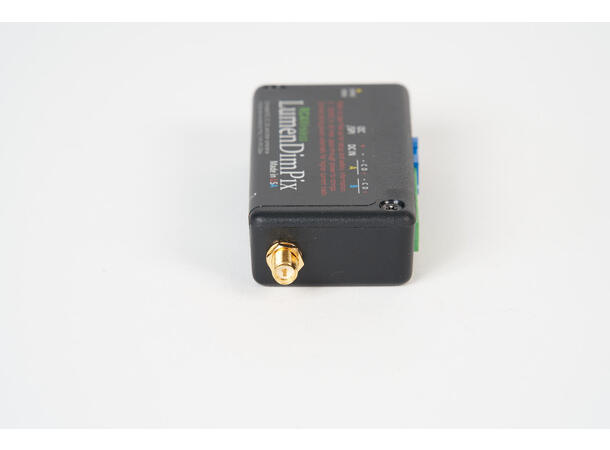

• RF Antenna: RP-SMA external antenna with nominal 100m range. Range can be further extended using high-gain and/or directional antennas
