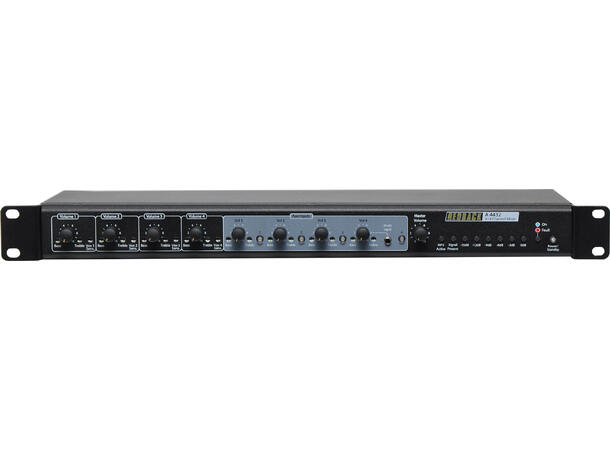

Designed in conjunction with pro-sound contractors, the A 4432 is a stand alone mixer which provides a flexible way to bring multiple audio sources together. It combines many of the best features from our popular mixer and signal processing range into one compact unit.
For priority messaging, four balanced inputs with priority for paging and emergency announcements are provided. Plus the ability to trigger playback of pre-recorded MP3 tones, messages and music from SD card. A remotely located A 4433 wallplate can be installed to provide source selection and level control. In addition, local connection of sources is provided using the A 4931 local input wallplate or A 4932 which is a boxed version of the wallplate. This is ideal for any multi-source installations.
Features
Four Mic/ Line Input channels (Inputs 1-4)
Four switched RCA AUX Input channels
Remote AUX source selection, volume and Local input source volume control via optional A 4433 and A 4931 wall plates
PTT Input and 24V PTT output (limited to 120mA) on inputs 1-4
Micro SD card based Alert/Evac/Chime/Voice-over module (In built)
Individual level, bass and treble control on all inputs
3.5mm music input overrides AUX 4
Three levels of priority
Adjustable Vox sensitivity on inputs 1-4
Adjustable input sensitivity 1V/100mV on inputs 1-4 and Aux inputs 1-4
Phantom Power on inputs 1-4
Tape out (Dual RCA)
Balanced Output (XLR male)
Five sets of closing contacts for message triggering (Alert/Evac/Ch1/Ch2/Cancel)
24V DC switched output (Limited to 120mA)
MP3 active indicator
Signal Present indicator
LED VU Meter
24V DC operation (Plugpack Supplied)
24V DC battery back up terminals
Specifications
Inputs: 4 x mic balanced 600O, 4 x Line Stereo 10KO, 4 x Line Stereo 10KO (switched)
Output: 600O balanced 0dBm
Distortion: Less than 0.3%
Frequency Response
Mic: 30Hz-15kHz
Line: 18Hz-23kHz
S/N ratio: All controls min. -98dB
Sensitivity: Mic 2mV, line 100mV/1V
Phantom power: Nominal 12V DC
Controls
Mic/line inputs: Bass, treble & volume + master
Bass/Treble: ±10dB @ 100Hz

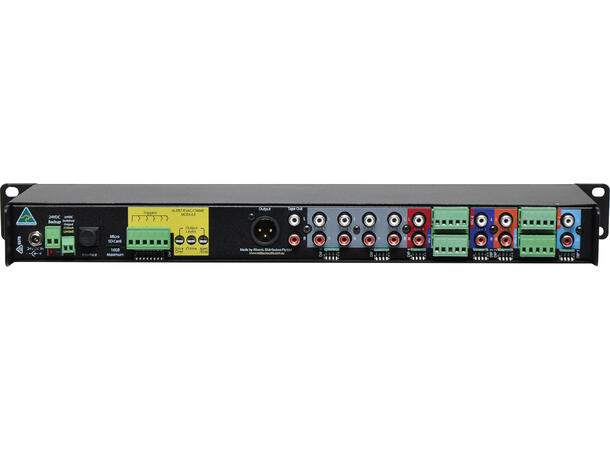

Connectors
Outputs: 3 pin XLR balanced, Stereo RCA
Mic inputs: Screw terminals
Line inputs: RCA sockets
Indicators: MP3 active, signal presence, 6 LED VU meter, power
Power supply: 24V DC
Mechanical
Dimensions: 482W x 170D x 44H mm
Weight: ˜2kg
*Specifications are subject to change without notice.
