NB! Strømforsyning ikke inkludert. Se tilbehør for kompatibel vare

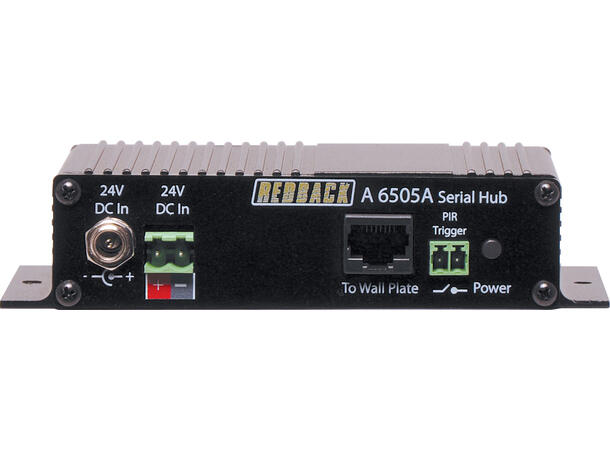

Designed to be used in conjunction with the A 6500 or A 6500A programmable touchscreen wallplate, this control hub enables the control of a variety of devices. Connection to the wallplate is via Cat5/6 cable up to 50m away.

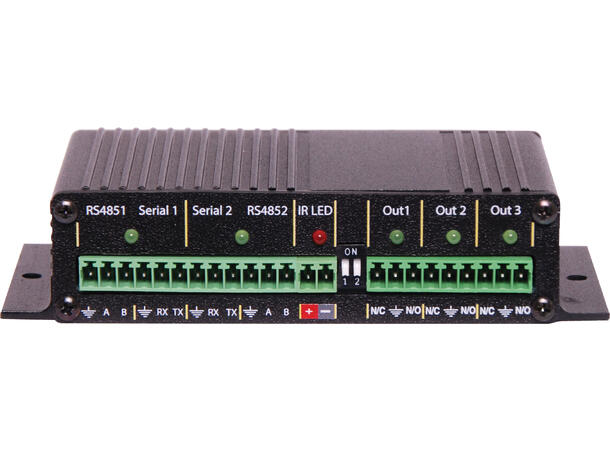

All commands from the programmed plate are then transported to this hub and the appropriate command signal being either serial (RS232/485 or both), IR or relay is then output to the corresponding pluggable terminals. Combined with the wallplate this could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier, the IR for controlling a set top box and relays for motorised projector screen, lighting etc. A passive infra red (PIR) detector input allows for motion activation of devices, such as when people enter the room. Requires 24V DC power which in turn powers the wallplate.

Size: 66W x 131W x 29H inc flanges.

Features

Provides 3 relay control outputs plus 2 serial control outputs.
Ideal for automation control in domestic and commercial applications.
PIR motion detect trigger sensor input.
RS232/485 compatible serial control.
Works with both A 6500 and A 6500A Redback touchscreen wallplates or any 3rd part control interface.
Compact design housed in a tough aluminium extruded case.
Australian Designed & Manufactured.
