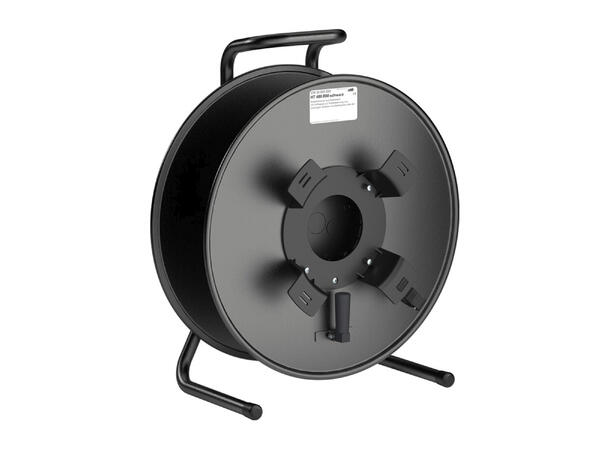

SCHILL HT480.RM-SW Kabeltrommel Inkludert kabelholder for fan-out

SCHILL HT480.RM-SW Kabeltrommel

Inkludert kabelholder for fan-out

Varenr: 140356
Alt. varenr: HT480.RM-SW
4 948,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

Roll over Beethoven...

or anyone else for that matter. These are the official cable reels for musicians, soundmen, and broadcasting technicians. The handle is so constructed that there is plenty of room between you and the reel, therefore your legs will never get hit. These reels are resistant to chemicals, gasoline, and oil. All reels are equipped with a brake. They have a large winding core, a cable infeed resistent to bending, and an effective strain relief for sensible cable handling. Models GT310 and GT450 have a rell made of almost indestructible black solid rubber. It is especially recommended for everyday use on stage.
The reels are empty, i.e. they are delivered without cable and cover. We have the complete SCHILL-assortment in stock – just ask us !

Application:

  • Inclusive RM - auxilliary spool


Specifications:

Article numberHT480.RM-SW
NameHT480.RM-SW
EAN4013046374017
BrandSCHILL
TypeKabeltrommel
Materialmetal
Core-Ø mm178
Outer-Ø mm460
Wind. width mm142
Wind. length max. at Ø 7,0 mm m400
Wind. length max. at Ø 8,0 mm m289
Wind. length max. at Ø 9,0 mm m225
Wind. length max. at Ø 12,0 mm m121
Wind. length max. at Ø 14,0 mm m100
Wind. length max. at Ø 20,0 mm m49
Wind. length max. at Ø 26,0 mm m25
Wind. length max. at Ø 30,0 mm m16
MiscellaneousInclusive RM - auxilliary spool
