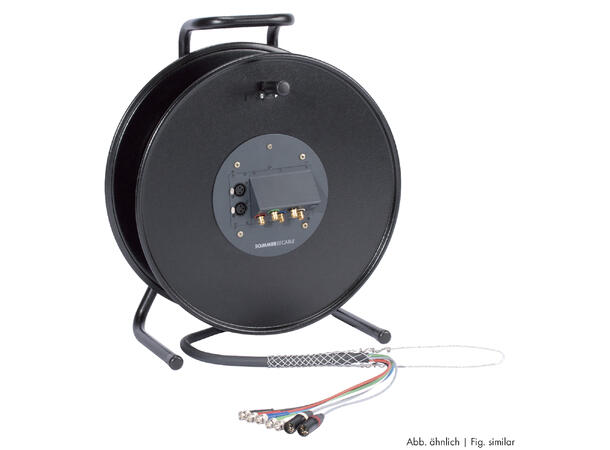

We supply light-weight and very sturdy SCHILL cable reels. These are loaded with our flexible TRANSIT video cable which is ideally suited for patch applications and outdoor transmissions due to the use of fine single litz wires. The reel has a front panel sheet fitted with three, five or seven colour-coded, recessed NEUTRIK BNC panel-mount sockets. For a better protection of the sockets the BNC panel is slanted. The cable is fitted with three, five or seven colourcoded HICON BNC connectors. By the way, we purposefully chose reels with a large inner core to prevent the sensitive insulation on the video cable from getting damaged.
Miscellaneous:
Configuration:
70,00 m video cable Transit 7 HD; 1 x 0,60/2,80; PVC Ø 15,00 mm; black (600-0851-07)
1 x SCHILL Kabeltrommel, HT480-SW, core: 178 mm, thread width: 142 mm, metal (HT480-SW)
7 x HICON BNC 3G-SDI crimp-female connector 0.6/2.8, ground isolated, thread 1/2', gold (BNC0.6/2.8FEH)
7 x HICON BNC 3G-SDI crimp-male connector 0.6/2.8, straight, nickel coloured (BNC0.6/2.8HD)
1 x Cable grip 10 - 18 mm (BD9)
Specifications:
| Length ft | 229,66 |
|---|
| Article number | TSH5H07-7000 |
|---|
| EAN | 4049371160285 |
|---|
| Length m | 70 |
|---|
| Article number | TSH5H |
|---|
| Brand | Sommer cable |
|---|
| Application | video |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Inner conductor | 3 |
|---|
| Inner conductor mm² | 0,28 |
|---|
| Connector-Brand | HICON |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Additional function | on cable spool |
|---|
| Type | BNC |
|---|
| Type (detailed) | BNC male, RGB |
|---|
| Type (detailed) | BNC female |
|---|
